Contents
		Upgrading from a version earlier than 3.70? Please click here.
		General Information
		First time User? Start Here... License & Copyright Introduction About File Explorer Version History Features Support     Windows Vista Compatibility System Requirements Installing File Explorer Adding a File Explorer Control to your Application What you need to ship Complimentary Products Acknowledgements
		The Templates
		Global Extension Templates   Activate File Explorer Control Templates   Document Viewer   Media Viewer   Background Media Load Button   Document Print Button   Flash Control Buttons   Html Background Color Button   Html Edit Buttons   Html View Buttons   Media Buttons	Code Templates   CallFe_EditMethod   CallFe_LoadMethod   CallFe_MediaAPIMethod   CallFe_NavigateMethod   DeclareFEObject
		File Explorer Class Reference
		feBrowser feHtmlEditor fePDF feMedia feFlash
		Dll Functions
		Useful References
		Tips & FAQ   [ Suggested Reading ] Examples The Storage File Example Considerations if upgrading from a version earlier than 3.70   [Important ] Internet Explorer Version Info Header / Footer strings for IE Page Setup Using DebugView File Explorer and The Future File Explorer Version Numbers Version History   [ Suggested Reading ]

Start Here!

Welcome to File Explorer!  If you are new to File Explorer, or if you have not used the product for a while, these steps should get you going in the right direction. File Explorer started off with fairly simple goals in mind (see the section called Product History for more info).  Since its release in November 2000 it has evolved and expanded to the point where it's at today, which is a long way off from where we started.  Because of this process of evolution the product has many diverse features, and can be quite difficult to get your head around.  For this reason, the easiest and best way to familiarize yourself with it is to simply have a look at the feabc.app example application, which demonstrates most of the features at any moment in time.  Compile the feabc.app (see the section titled Examples for more info) and spend a few minutes having a look at the various things which the application can do. Once you have found something which looks exciting, have a look at the code / templates which the examples application uses, and then turn to this document should you require more help how the templates, methods, properties and logic works (although most of the time the example application is fairly clear about what it's doing). For some users the templates that ship with File Explorer will be enough to achieve what you want to do.  For users who want to scratch below the surface (highly recommended), have a look at what code the templates generate.  The templates simply generate code that implements the various classes that make up File Explorer.  Those classes are all outlined in this document. If you are still unsure about something after you've looked at the feabc.app example, and read the documentation, feel free to contact us for further assistance or to be pointed in the right direction.  The Frequently Asked Questions is another useful reference to read through once in a while, and be sure to read the product's Version History regularly to see what we're working on.

License & Copyright

This template is .  None of the included files may be distributed. Your programs which use File Explorer can be distributed without any File Explorer royalties.

Each developer needs his own license to use File Explorer. (Need to buy more licenses?)

This product is provided as-is. Use it entirely at your own risk. Use of this product implies your acceptance of this, along with the recognition of copyright stated above. In no way will CapeSoft Software (Pty) Ltd, their employees or affiliates be liable in any way for any damages or business losses you may incur as a direct or indirect result of using this product.

Introduction

While writing CapeSoft Mailer, we were looking for a way to display html documents as if they were being viewed through IE, rather than just viewing the HTML 'text'.  After much scratching and testing we implemented an object using the Internet Explorer OCX.  With this initial work under our belts we started looking at what other doors similar OCX integration could open, and started writing what was to become the File Explorer.  We added support for html browsing and editing, and support for pdf, sound, movies, and flash.

Since we released the first version of File Explorer the product has evolved and grown into a fairly large product, as you will see if you have a look at what the feabc.app example application is capable of doing. Enjoy...!


Product History

In November 2000 we released the first version of File Explorer for Clarion 5.  At that time we started building a control to browse html pages, using the Internet Explorer "WebBrowser" OLE control, and the CW OLE container control to host it.  This proved unstable, and although we wrote huge amounts of "don't fall over and die" code, the File Explorer control (at that time called Html1) was always subject to the OLE control's problems.

Then in March 2002 we moved to using COM and wrote a new control for browsing html pages, based on pure COM (not the OLE control / container which we had been using).  The improvement in terms of speed and stability was mind blowing. Since then FileExplorer has come an long way and expanded to include the feBrowser control for viewing HTML and web pages, feHtmlEditor for editing HTML (soon to be replaced by the brand new, greatly improved, feEditor), feFlash for viewing Flash content, fePDF for PDF documents and feMedia which provides a full media player.

Features

• Simple to add a control to your program in a matter of minutes.
• Each "Viewer" control can play any number of file formats, you choose while file formats are supported for each control
• Auto load a file into a control as the window opens
• Supports multiple controls per window, so you can play MP3 files while browsing the web!
• Optionally enable "smart loading", where the user can select a file to load / play, and the Viewer Control detects the file type and handles the ocx / com initialization by itself...

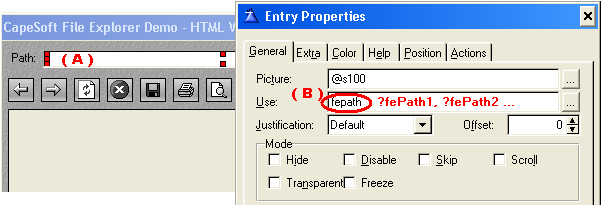

• Supports allocating variables to each control (or a single variable shared across multiple controls), so you can code controls to disable themselves if the variable equals true or false or whatever...
• Full callback-function support with examples...
• Browse html...
  • Browse pages from disk or the internet
  • Templates that drop standard browsing buttons (back, forward, refresh, save, print etc etc) onto your windows
  • When a user clicks on a hyperlink you can see where that hyperlink is navigating to, and either navigate there, cancel the navigation, or navigate somewhere else...
  • Easy to implement a status bar
  • Read from and write to html fields in an html form from your app!
  • Trigger the "submit" button on an html form
  • Get a list of all the fields in an html form
  • Uses Internet Explorer and can hence display anything that IE can.
  • Full control over loaded page contents via the HTML DOM.
• Edit html...
  • Templates to add all the standard editing buttons to your windows, such as bold, underline, print, save, indent, etc etc etc.
  • Insert text, graphics, hyperlinks, etc.
  • Write text to a loaded html page from your code...
  • Easily retrieve properties such as the text ("text" or "html") from the loaded page or selected section of a page, a list of images on the loaded page etc etc.
  • Use this functionality to easily make a WYSIWYG email editor, then integrate File Explorer with CapeSoft NetTalk to send the email!  (Example included).
  • Identify each key the user presses on the keyboard
• View PDF files...
  • Easily load and view PDF files
  • Includes functionality to save, print, find, zoom etc etc
  • Use either the native Adobe Acrobat toolbar, or hide that toolbar and use the File Explorer templates to drop your own controls onto the window...
• Play sound files...
  • Supports MP3, Wav, Snd, Au, MID, M3U and MPE formats
  • Complete with standard play, pause, stop buttons
  • Control volume, play rate, number of times a file plays (loops) etc etc
  • Access file properties such as duration, title, author etc etc
• Play "movie" files...
  • Supports MPEG, Mov, AVI, WMV and QT formats
  • Standard stop, play, pause buttons
  • Set volume, play rate, number of times a movie plays (loops) etc etc
• Play Macromedia Flash files...
  • Great way to jazz up your apps.  Why not play a Flash file in the background on your "intro" window, or help screens...  Sky's the limit.
  • Stop, pause and play buttons
  • Methods for handling current frame etc.
• Other cool tools...
  • Store multiple multimedia files in a single TopSpeed file...
  • Methods for playing sound files using Window's API calls
  • Read and write to the Window's registry

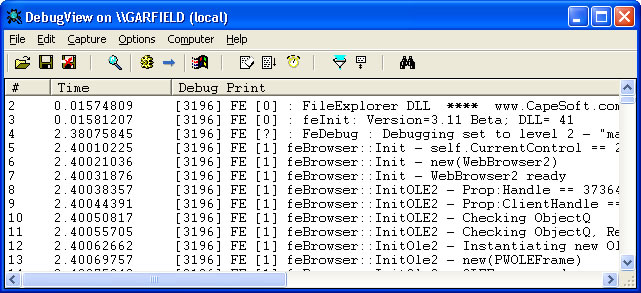

  • Send messages to the system debugger



Support

Your questions, comments and suggestions are welcome. Check our web page (www.capesoft.com) for new versions. You can also contact us in one of the following ways.

CapeSoft Support
	Email	support@capesoft.com
	Telephone	+27 87 828 0123
	Fax	+27 21 715 2535
	Post	PO Box 511, Plumstead, 7801, Cape Town, South Africa

CapeSoft Sales
	Web	www.capesoft.com
	Email
	Telephone	+27 87 828 0123
	Fax	+27 21 715 2535
	Post	PO Box 511, Plumstead, 7801, Cape Town, South Africa



Microsoft Windows Vista Compatibility

File Explorer is largely compatible with Windows Vista. The Browser control works well with Internet Explorer 7, the Media Player supports Windows Media Player 11, and the PDF and Flash viewers us components provided by Abode (Adobe Reader and Flash Player). The exception is the HTML editor control, which does not exist under Windows Vista. You can however download a redistributable file to install this component. The redistributable is an MSI file provided by Microsoft. You download this file from  http://www.microsoft.com/downloads/details.aspx?familyid=b769a4b8-48ed-41a1-8095-5a086d1937cb&displaylang=en.

We are currently working in integrating JavaScript based HTML editors with File Explorer, which will make the HTML editor control redundant, as well as providing far more flexibility and control, with any reliance on components other than the Browser control.

System Requirements

The various File Explorer classes require the following to be installed.  While File Explorer (or parts thereof) may work on earlier versions than those indicated below, these are considered to be the minimum system requirements.

Microsoft Internet Explorer 5.5 (or later)
Adobe Acrobat Reader 4 (or later)
Windows Media Player 6.4 (or later)
Macromedia Flash Player



Installing File Explorer

• Run the supplied installation file.
• For information on how to obtain the relevant OCXs, see the FAQ section below.



Adding a File Explorer Control to your Application

Adding a File Explorer Control to your Application is this easy...

1. Add the File Explorer Global Extension Template to your application.


• Load your application in the Clarion IDE


• Click the Global button


• Click the Extensions button


• Click the Insert button

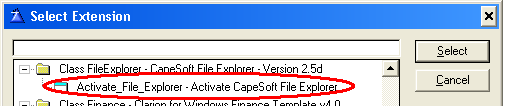

• Select the Activate_File_Explorer template from the Select Extensions list that appears.



• Select the Select button and the File Explorer Global Extension's prompts appear on the right-hand portion of the Extension and Control Templates window.


• Leave all the template options as they appear.  The default's are fine for now.  You can always come back and change them later...


• Click OK a couple times until you're back in your app, then compile...  That's it!!!


2. Once the Global Extension template has been added to your application, you can add other templates, call dll functions, etc etc.  You should start by compiling the example application ( click here for info ) called "feabc.app".  Look at what this example can do, and then have a look how we did it.  Use this document to lookup additional information and hopefully the pieces will start fitting together.




What you need to ship

DLLs required (Standalone mode compiles)
	Clarion Version	DLL required
	Clarion 6.1	C6 0FEX.DLL and PWUTIL.DLL
	Clarion 5.5	C55FEX.DLL and PWUTIL.DLL

DLLs required (Local mode compiles)
	Clarion Version	DDLL required
	Clarion 6.1	PWUTIL.DLL
	Clarion 5.5	PPWUTIL.DLL



Complimentary Products

CapeSoftHyperActive - HyperActive allows you to easily make any control into a url, that opens a page in your default web browser.  HyperActive also supports sending a control's url directly to your File Explorer control.  Place buttons or a list box on the same window as your File Explorer control, and use those controls to load urls into your File Explorer control.

CapeSoft NetTalk - One of NetTalk's features is full Email support from within your app.  Use File Explorer to create html documents, and NetTalk to send the html "source code" as an email, along with embedded graphics, attachments etc.  If you already own both NetTalk and File Explorer, be sure to look at the "fe_nettalk.app" app in " C55\3rd Party\Examples\File Explorer\FE and NetTalk ".  Demonstrates how to send and receive email using these two tools.



Acknowledgements

• Andy Ireland for developing the brilliant COM classes which File Explorer makes use of..


• Carl Barnes for input with the hand coded examples, lists of features to add to File Explorer, and occasionally sending info on how to write those features when it took too <g>..


• Kevin Erskine for suggesting we support Mike Hanson's Resizer template, and writing the template code to do it..



The Templates

Activate File Explorer
	Summary
	Global Extension Template Activate CapeSoft File Explorer Features in your application Required
	What does it do?
	You must add this template to your app or no other templates / objects will work.  This template sets up the File Explorer classes (dll / lib) so that other templates can implement those classes.
	Prerequisites
	None
	How do I implement it?
	1. Open your app 2. Select "Global Properties" from the "Application" menu 3. Click the "Extensions" button 4. Click the "Insert" button Select "Activate_File_Explorer" ( found under "Class File Explorer" ) 5. Click the "Select" button ( you can leave all default settings, these are discussed below ) 6. Click "OK" 7. Click "OK" again
	What are my options?
	Folder for temp files File Explorer may need to generate temporary files while your app runs.  If it does, by default it uses the same folder as your exe.  You can change this here to be either the same folder as the exe (default), or the system temporary folder ( normally "c:\windows\temp" or similar ). Do not generate any code No template code will be generated at compile time, however any controls which you have populated will still appear. Do not automatically generate map Does not add anything to your global map at compile time. Do not automatically call feDispose By default, File Explorer will generate a line of code which calls the feDispose function as your application closes.  If for some reason you do not want this function to be called, you can tick this option here.  If you're not sure, don't tick this.

Document Viewer
	Summary
	Control Template View Html, PDF, and SWF files Optional
	What does it do?
	Populate this control onto a window in order to be able to view and / or edit HTML, PDF, or SWF files in it.
	Prerequisites
	You need to have added the Active_File_Explorer global extension template to your application.
	How do I implement it?
	On the window where you want to use this control, choose "Control Template..." from the "Populate" menu. Look for the section called "Class FileExplorer", then select the item in that section called "DocumentViewer".  Click on your window to populate this control.
	What are my options?
	"General" Tab Object Type This control used to be able to load more than one file type.  As the functionality evolved we had to break it up to support only one file type per control.  Choose the File Type here. "Common" Tab Initial Document If you want this control to load a file as the window opens, enter the file name here.  Tick "Variable?" if you want to enter a variable instead of a filename. Provide 'All Files' Option in File Lookups If the user uses the template's 'File Lookup' button to find files (much like the DOS File Lookup Clarion control), enabling this option will result in the lookup including 'All Files' as a supported file type. "Browse Html" Tab - only available if you choose Html Browsing on the first tab Auto-Resize control Have the Viewer control automatically resize when the window resizes, selected by default. Implement Callback Events Callback events are handled "internally" by File Explorer, which calls a virtual method called EventCallback each time an event is fired.  If you want to enable Callback events, simply tick this option here.  (Note: Enabling Callback events will add some overhead to the object, so theoretically it will slow it down, however the speed difference should not be noticeable). "Edit Html" Tab - only available if you choose Html Editing on the first tab Auto-Resize control Have the Viewer control automatically resize when the window resizes, selected by default. Implement Callback Events Callback events are handled "internally" by File Explorer, which calls a virtual method called EventCallback each time an event is fired.  If you want to enable Callback events, simply tick this option here.  (Note: Enabling Callback events will add some overhead to the object, so theoretically it will slow it down, however the speed difference should not be noticeable). "PDF" Tab - only available if you choose PDF on the first tab Show Toolbar Decides whether or not the native PDF toolbar is displayed when you view documents. Show Scrollbars Decides whether or not scrollbars are displayed when you view documents. Initial Zoom Sets the initial zoom percentage for the object. Preferred Acrobat Version Because it is possible to have more than one version of Adobe Acrobat installed on your PC, and because some methods only work with Acrobat 4 ( as described in the methods and properties sections of this document ), we enable you to specify which version of Adobe Acrobat should be loaded.  If the version you choose here is not installed on the PC, any available version will be loaded. "Flash" Tab - only available if you choose Flash on the first tab Loop Files Plays the file repeatedly if enabled "Object" Tab Object Name Each Viewer Control instantiates a File Explorer object (from the File Explorer class), which it uses to "work".  These File Explorer objects need names.  The templates will automatically name the objects for you (typically something like ThisViewer1, ThisViewer2 etc), but you can rename the object here if you have reason to. Var to Disable Optionally create a variable (Byte) which can be set at runtime, which will disable this object if set to 1 (True), and enable it if set to 0 (False).  You can point all objects in your app to a single override variable allowing a single 'switch' for the user to disable all controls, or use multiple variables allowing the user 'switches' to disable specific controls or groups of controls at run-time.   Don't Generate Any Code No code will be generated for this particular object at compile time.

Media Viewer
	Summary
	Control Template Play sound and video files Optional
	What does it do?
	Populate this control onto a window in order to be able to play sound and video files
	Prerequisites
	You need to have added the Active_File_Explorer global extension template to your application.
	How do I implement it?
	On the window where you want to use this control, choose "Control Template..." from the "Populate" menu. Look for the section called "Class FileExplorer", then select the item in that section called "MediaViewer".  Click on your window to populate this control.
	What are my options?
	"General" Tab ( no options ) "Common" Tab ( File Types ) The top two sections of this tab allow you to choose which file types this control will be allowed to play. Provide 'All Files' Option in File Lookups If the user uses the template's 'File Lookup' button to find files (much like the DOS File Lookup Clarion control), enabling this option will result in the lookup including 'All Files' as a supported file type. Initial Document If you want this control to load a file as the window opens, enter the file name here.  Tick "Variable?" if you want to enter a variable instead of a filename. "Advanced" Tab Auto-Resize control Have the Viewer control automatically resize when the window resizes, selected by default. Implement Callback Events Callback events are handled "internally" by File Explorer, which calls a virtual method called EventCallback each time an event is fired.  If you want to enable Callback events, simply tick this option here.  (Note: Enabling Callback events will add some overhead to the object, so theoretically it will slow it down, however the speed difference should not be noticeable). "Other" Tab Auto-Rewind Sets whether the Media Files automatically rewind once they have finished playing. Allow Zoom Changing Sets whether the user can right-click on the media file while it is playing, and adjust the zoom properties. Auto-Start Sets whether the Media Files start playing automatically once loaded. Mute Sound Mute the sound. Times to Play Set the number of times a file plays before stopping. Playback Rate Set the control's playback rate.  100 plays files at their 'normal speed' of 100%.  Entering a value of 50 or 200 would play files at 50% or 200% of their 'normal' speed. Zoom SSets the zoom for the video clip.  Select one of 50%, 100% or 200%  (relative to the default playing size of the media clip); 'Full Screen', 'Fit', '1/16th Screen Size', '1/4 Screen Size' or '1/2 Screen Size'.  Note that some zoom sizes (such as 'Full Screen') will only work if the file which you load supports that resolution.  Also, note that setting the zoom to 1/2 of the screen size will not work if your FileExplorer control is not large enough to hold that size. Start Time By default, files start playing at the beginning (0.0).  Setting this to 10.5 would start playing the file 10 and a half seconds into the clip.  There is also a property called 'End At', and 'Duration'.  See the 'Properties' section in these docs for notes on how to implement these. Position (Left, Right, Bottom) When loading a file into the MediaViewer control, the ocx may resize itself to fit the size of the file it is loading (visual size).  To clean this up you can set these three sizes here.  Immediately after the file loads (and the ocx resizes itself), File Explorer will resize the ocx so that there are these units of space between the control's left, right and bottom borders, and the left, right and bottom borders of the parent window. Auto-Resize Set this to true if you want the control to automatically resize itself each time a new file is loaded.  The control will increase or decrease in size so that it is large enough to contain the loaded file (assuming your window is large enough!).  By default this is set to 'false'. "UI" / "User Interface" Tab Show Toolbar Sets whether or not the native Media Viewer toolbar is displayed. Enable Toolbar Enables / disables the toolbar.  The 'Show Toolbar' option must be checked to use this. Show Slide Bar Sets whether or not the "Slide Bar" control appears.  This is the control which you can use to "move around" inside the playing file. Enable Slide Bar Enables / disables the slide bar.  The 'Show Slide Bar' option must be checked to use this. Show Position Controls Sets whether or not the "Position Controls" inside the toolbar are displayed.  The 'Enable Toolbar' and the 'Show Toolbar' options must be checked in order to use this. Show Info Window Sets whether or not the 'Additional Information Window' is displayed.  This window shows information such as 'Artists Name' and 'Copyright Information'.  By default this is not activated. SShow Goto Bar Sets whether or not the "Goto" drop list is displayed.  By default this is not activated. Right Click Menu When the user right-clicks on the control (assuming a file has been loaded into it), a popup menu appears, allowing the user to set various options.  This is a native Microsoft popup menu.  If you want to turn off this menu (so it does not appear), do that here. "Object" Tab Object Name Each Viewer Control instantiates a File Explorer object (from the File Explorer class), which it uses to "work".  These File Explorer objects need names.  The templates will automatically name the objects for you (typically something like ThisViewer1, ThisViewer2 etc), but you can rename the object here if you have reason to. Var to Disable Optionally create a variable (Byte) which can be set at runtime, which will disable this object if set to 1 (True), and enable it if set to 0 (False).  You can point all objects in your app to a single override variable allowing a single 'switch' for the user to disable all controls, or use multiple variables allowing the user 'switches' to disable specific controls or groups of controls at run-time.   Don't Generate Any Code NNo code will be generated for this particular object at compile time.

Background Media Load Button
	Summary
	( No longer supported - please use the CallFe_MediaAPIMethod ccode template instead )

Document Print Button
	Summary
	Control Template Prints the currently loaded document Optional
	What does it do?
	This template drops a button onto your window, which prints the loaded document when you click it.  You will need to have already populated a Viewer Control onto the window before you can populate this template.  It currently supports printing html pages (feBrowser, feHtmlEditor) and also PDF documents (fePDF).
	Prerequisites
	You need to have added the Active_File_Explorer global extension template to your application.
	How do I implement it?
	1. On the window where you want to use this control, simply choose "Control Template..." from the "Populate" menu.
	What are my options?
	Don't show "Printer Options" dialog window By default this is not checked, and you will be presented with the standard "Printer Options" screen before printing (if supported), where you can set paper size etc.  You can select this option here, which will result in the document printing "straight to the printer" instead. Document Type (obsolete) NOTE: For an example, have a look at the "simple_fePDF" procedure in the feabc.app example application.

Flash Control Buttons
	Summary
	Control Template Used with the Document Viewer template Optional
	What does it do?
	This template populates a "Play", "Pause", and "Stop" button onto your window, to control the playing of Flash files in the Document Viewer control.
	Prerequisites
	You need to have added the Active_File_Explorer global extension template to your application.
	How do I implement it?
	1. On the window where you want to use this control, simply choose "Control Template..." from the "Populate" menu.
	What are my options?
	There are no additional options for this template.

Background Color Button
	Summary
	Control Template Used with the Document Viewer control Optional
	What does it do?
	Use this template to change the background color of an html document (Html editing, not browsing), using the following steps ( assuming you have already populated a Viewer Control and have set it up to support "Html Editing" ).
	Prerequisites
	You need to have added the Active_File_Explorer global extension template to your application.
	How do I implement it?
	1. On the window where you want to use this control, simply choose "Control Template..." from the "Populate" menu.
	What are my options?
	Reload Document After Updating IIf you select this, the html document will be saved, and then reloaded each time you change its background color.  The reason this may be necessary is that graphics in the html page which do not contain "full" paths ( such as " subfolder1/image1.gif " ) will not display once you change the background color - an ocx refresh issue.  Turning this option on gets around that problem by effectively "reloading" the html document ( and all the graphics ) each time the background color changes.

Html Edit Buttons
	Summary
	Control Template To Do Optional
	What does it do?
	To Do
	Prerequisites
	You need to have added the Active_File_Explorer global extension template to your application.
	How do I implement it?
	1. On the window where you want to use this control, simply choose "Control Template..." from the "Populate" menu.
	What are my options?
	(( none )

Html View Buttons
	Summary
	Control Template To Do Optional
	What does it do?
	To Do
	Prerequisites
	You need to have added the Active_File_Explorer global extension template to your application.
	How do I implement it?
	1. On the window where you want to use this control, simply choose "Control Template..." from the "Populate" menu.
	What are my options?
	(( none )

Media Buttons
	Summary
	Control Template To Do Optional
	What does it do?
	To Do
	Prerequisites
	You need to have added the Active_File_Explorer global extension template to your application.
	How do I implement it?
	1. On the window where you want to use this control, simply choose "Control Template..." from the "Populate" menu.
	What are my options?
	(( none )

CallFe_EditMethod
	Summary
	Control Template To Do Optional
	What does it do?
	In order to use this code template, you must have already populated one of the Viewer Controls onto your window.  Use this template ( typically behind a button ) to implement the File Explorer "Edit" method.
	Prerequisites
	You need to have added the Active_File_Explorer global extension template to your application.
	How do I implement it?
	To Do
	What are my options?
	Parent Object This drop list lists all the current File Explorer objects which are present in your procedure.  Select the object which should load this file.  Look in the Viewer Control's properties, on the "Class" tab to see its object name if you are unsure. Document Type The various "Edit Options" (see below) vary depending on the type of document you are going to load ( and hence edit ).  Select the document type here. Edit Option Select one of the options from the drop list, e.g. "Find", "Copy" etc. NOTE: For an example, have a look at the "Advanced_feBrowser_CodeTemplates" procedure in the feabc.app examples.

CallFe_LoadMethod
	Summary
	Control Template To Do Optional
	What does it do?
	In order to use this code template, you must have already populated one of the Viewer Controls onto your window.  Use this template ( typically in the event::accepted for a button ) to load a file into an existing Viewer Control.
	Prerequisites
	You need to have added the Active_File_Explorer global extension template to your application.
	How do I implement it?
	To Do
	What are my options?
	Parent Object This drop list lists all the current File Explorer objects which are present in your procedure.  Select the object which should load this file.  Look in the Viewer Control's properties, on the "Class" tab to see its object name if you are unsure. File to Load Enter the name of the file which you want to load ( e.g. c:\MyFile.htm ). Is Variable If you have entered a variable in the "File Name" field above, then check this option. Treat Unknowns As ( Obsolete ) NOTE: For an example, have a look at the "Advanced_feBrowser_CodeTemplates" procedure in the feabc.app examples.

CallFe_MediaAPIMethod
	Summary
	Control Template Optional
	What does it do?
	The template is typically used to play MP3 files in the "background" while your app is running (you don't lose focus while the file plays).  It is typically used behind a button, but could also be used as your window opens to start playing an MP3 file "automatically" as the window opens.  The code generated by this template calls functions in the File Explorer dll, which in turn implement the MCI (Windows Media Control Interface API), so no File Explorer objects need to be instantiated, and you do NOT need to have Windows Media Player installed, as we do not use the Media Player ocx at all here, only standard Win32 API calls.
	Prerequisites
	You need to have added the Active_File_Explorer global extension template to your application.
	How do I implement it?
	See the feMedia_MCIExamples procedure in the feabc.app example application that ships with File Explorer.
	What are my options?
	Option This drop list lists all the options that the "MediaApi" method exposes.  Pick one. File Name If you select the option "Play MP3" option from the "Option" drop list, then use this field to enter the name of the MP3 file which you wish to play, e.g. c:\myfile.mp3.  If you selected "Stop MP3" from the above drop list, then simply leave this field blank. Is A Variable If you enter a variable in the "File Name" field above, then check this option.

CallFe_NavigateMethod
	Summary
	Control Template To Do Optional
	What does it do?
	In order to use this code template, you must have already populated one of the Viewer Controls onto your window.  Use this template ( typically behind a button ) to implement the File Explorer "Navigate" method, and navigate to a specific page within the loaded document.
	Prerequisites
	You need to have added the Active_File_Explorer global extension template to your application.
	How do I implement it?
	To Do
	What are my options?
	Parent Object This drop list lists all the current File Explorer objects which are present in your procedure.  Select the object which should load this file.  Look in the Viewer Control's properties, on the "Class" tab to see its object name if you are unsure. Navigate To Choose one of the positions to navigate to.  Note that the "Go Back 1" and "Go Forward 1" options may behave differently depending on the type of file you are navigating.  Typically these will navigate to the previous / next page or frame. PageNumber If you select "SpecificPage" as you "Navigate To" option, then you need to enter the page you want to navigate to in this field. NOTE: For an example, have a look at the "Advanced_fePDF_CodeTemplates" procedure in the feabc.app example application.

Declare FE Object
	Summary
	Control Template To Do Optional
	What does it do?
	This very simple code template simply instantiates (in code) a new object for the File Explorer class.  When you use the "main" control templates (Viewer Controls etc) they create File Explorer objects for you, which you could then reference from your own code ( eg. ThisViewer1, ThisViewer2 ... ).  You may want to write code that references the File Explorer class in a procedure which does not already have any File Explorer templates present, in which case you could either make (instantiate / declare) the object yourself, or simply use this template.
	Prerequisites
	You need to have added the Active_File_Explorer global extension template to your application.
	How do I implement it?
	To Do
	What are my options?
	Object Name Defaults to "ThisViewer1".  You can rename the object if you prefer something else.  All objects within the same procedure must have unique names. Object Type Select an object type from the drop list. NOTE: For an example, have a look at the "About" procedure in the feabc.app example.



Dll Functions

Below are various functions that can be called from anywhere inside your application, so long as you have added the File Explorer Global Extension template.

fe_ClassVersion
fe_DebugString
fe_GetHtmlGraphicsInfo
fe_GetIEVersionInfo
fe_GetOSVersionInfo
fe_GetRegValue
fe_MCIPlay
fe_MCIStop
fe_OnlineStatus
fe_OnlineStatusConnectionName
fe_ShellExecute
fe_StartIE
feDispose

Dll Functions
	fe_ClassVersion     ( byte Flag=0 ) MyString = fe_ClassVersion ( ) ! eg.'3.12' MyString = fe_ClassVersion (1) ! eg. '48' MyString = fe_ClassVersion (2) ! eg. '3.12 Beta' This method returns a string, containing File Explorer version information. The information it returns depends on the (optional) Flag parameter. If you pass no parameter, or the value 0, the method returns the File Explorer Class Version - as seen at the top of the documentation. If you pass the value 1, the method returns the incremental dll version, as explained in the File Explorer Version Numbers section of the docs.  This is useful for checking the dll version in your app, as you can use mathematical operators on the value that is returned. If you pass the value 2, the method returns a descriptive string containing the version details (as shown above).   fe_DebugString  (string DbgMessage) fe_DebugString ('Hello World') See the section titled Using DebugView.  This sends a debug message from within your own app.  Useful extra.   fe_GetHtmlGraphicsInfo  (*cstring HtmlSource) ( not yet implemented )   fe_GetIEVersionInfo  ( byte pTranslate=false ) ,string loc:TempString = fe_GetIEVersionInfo() ! 4.72.3612.1713 loc:TempString = fe_GetIEVersionInfo(true) ! Internet Explorer 4.01 SP2 Returns the currently installed version of Internet Explorer. If you pass true (1) for the pTranslate parameter, then the product name will be returned (if possible) - see the examples above. See the Internet Explorer Version Info section for more info.   fe_GetOSVersionInfo     ( ),string loc:TempString = fe_GetOSVersionInfo() if loc:TempString [3:4] = '95' ... loc:BuildNumber = loc:TempString [16:19] DisplayTextForScreen = left(loc:TempString) This function returns the current Operating System.  The syntax of the string returned is as follows:OS.MajorVersion.MinorVersion.BuildNumber; e.g.  NTS.0005.0001.0000.  We always return the string in the format XXXX.XXXX.XXXX.XXXX, to make string processing easier (i.e. ReturnString[1:4], ReturnString[6:9], ReturnString[11:14], ReturnString[16:19] ).  Note that the OS component could be preceeded by blank spaces ( e.g. "  95" ) to make string processing easier, while the remaining components will be preceeded by zeros ( 0 ) if they are not 4 characters long, or will be clipped to the first four characters if they are longer.  This may sound complicated but it makes coding much easier (as illustrated above). The OS component of the string returned will be one of the following:   31  (Windows 3.1)   95  (Windows 95)   98  (Windows 98)   ME  (Windows Millennium)  NTW  (NT Workstation)  NTS  (NT Server) W2KP  (Windows 2000 Professional) W2KS  (Windows 2000 Server) 0000  (Four zeros indicates an unknown OS, please notify support@capesoft.com)   fe_GetRegValue  (string ParentFolder, string NameOfKey, string NameOfValue),string MyString = fe_GetRegValue ('HKEY_CURRENT_USER', 'Software\Microsoft\Internet Account Manager', 'Default Mail Account' ) Reads a value from the Windows registry.   fe_MCIPlay     (string pFileName ) ,byte fe_MCIPlay ('c:\test.mp3') Every MCI (Media Control Interface) multimedia device supports a core set of MCI commands in a way that makes sense for that device. For example, the play ( MCI_PLAY, see MSDN for more info on the various Windows' API calls for this ) command causes the open device to play a file or track, no matter what kind of data the device works with. File Explorer has wrapped up a lot of this functionality into two simple functions which you can call from anywhere in your Clarion application, fe_MCIPlay and fe_MCIStop. fe_MCIPlay is used to play a variety of sound or video files, including MP3's (see the example above).   fe_MCIStop     ( <string pFileName> ) ,byte fe_MCIStop () Every MCI (Media Control Interface) multimedia device supports a core set of MCI commands in a way that makes sense for that device. For example, the play ( MCI_PLAY, see MSDN for more info on the various Windows' API calls for this ) command causes the open device to play a file or track, no matter what kind of data the device works with. File Explorer has wrapped up a lot of this functionality into two simple functions which you can call from anywhere in your Clarion application, fe_MCIPlay and fe_MCIStop. fe_MCIStop is used to stop playing whatever file you started playing by calling the fe_MCIPlay function. The omittable pFileName parameter is not currently supported, simply call this function as documented in the example above.   fe_OnlineStatus     ( byte pOption=0 ) ,byte fe_OnlineStatus() ! see below This function's purpose is to establish whether you are currently connected to the internet.  The behaviour / result of the function is determined by the parameter pOption. If pOption is omitted (or passed as zero), this function will simply return true (1) or false (0), indicating whether you are connected or not. if fe_OnlineStatus() = 1   message ('I am connected!') end If pOption is passed as 1, 2, 3 or 4, this function returns the following: pOption=1; returns true / false indicating whether the local system is in offline mode pOption=2; returns true / false indicating whether the local system uses a modem to connect to the internet pOption=3; returns true / false indicating whether the local system uses a local network area to connect to the internet pOption=4; returns true / false indicating whether the local system uses a proxy server to connect to the internet if fe_OnlineStatus(4) = true   message('You are connected through a Proxy Server') end If the function returns a negative number it indicates that an error occurred.   fe_OnlineStatusConnectionName     ( byte pOption=0 ) ,string fe_OnlineStatusConnectionName() Use the fe_OnlineStatus function to establish whether you are connected to the internet.  Use this function (fe_OnlineStatusConnectionName) if you want to know the name of the current connection (assuming there is one).   fe_ShellExecute  ( string Parm1 ) ( "Semi-private" function, called by the fe_StartIE function, wraps the ShellExecute API function ) fe_StartIE     ( string URL ) fe_StartIE ('www.CapeSoft.com') This function simply uses the ShellExecute API call to launch Internet Explorer and load a webpage. TIP: Have a look in feabc.app's "Comments" procedure to see how to use this function to make urls on a window "live"... feDispose     (  ) feDispose() This function is used to clean up after File Explorer, and is called by the Global Extension Template as your app closes, to make sure File Explorer does not cause any memory leaks.



Useful References

Tips & FAQ

Note: The old "Tips and FAQ" section can be found in the "fe_oldFAQs.htm" document.  This section is being rewritten for the new classes.

General / Product FAQ's

1.1 When I click on the "Help" button for a template (Actions tab) I get an error saying "The topic file does not exist.  Contact your application vendor for an updated Help file"...
You have an old copy of the File Explorer help file (c55fex.hlp).  Search for all copies of this file, delete all of them, then reinstall the latest version of File Explorer.

1.2 "Link Error: Unresolved External Fe..." - how to handle these (compile) errors...
Several users who are using MultiProj to generate dlls which contain File Explorer have asked about this.  In your app's Global Extensions, go to "Activate MultiProj Support", to the "Versions" tab, "Properties", "Resources", and make sure that you've included "c55fex(l).lib" as a resource.

1.3 Compile errors?
a) See the section "Considerations if upgrading...".

b) Also, check that your app is 32 bit, that you don't have bits of an old version of FE lying around, and that your redirection file is pointing to the paths where File Explorer is installed (3rdParty/bin, 3rdParty/libsrc etc).

c) Also, there seems to be an issue whereby some C55 installations (only C55 "G" as far as I know) have a window.tpw file which does not set up the %LocalClassDefinition embed point, which our templates use.  It might be caused by running the "gold to G" patch, but this has not been confirmed.  You can download the correct version of window.tpw by clicking here.

1.4 Having multiple Viewer Controls on one window...
No issues, please upgrade to version 2.9 or later.

1.5 Since upgrading my app won't compile - I get a compile error saying "Syntax error: Illegal data type" FEOLDBROWSER"
If you get this please email us at .

1.6 Is there a way to see if a user has a live internet connection?
Yes.  Have a look at the fe_OnlineStatus function.

1.7 I have a procedure that contains a File Explorer control.  I pass a filename to this procedure and the control loads it.  It used to work fine, but now it isn't working (loading the file)!  What's happened?
In one of the earlier versions of File Explorer we used to initialize the onjects in ThisWindow::Init (after the window opens).  Due to complications with some objects we moved this code (template generated) to after the event "after window opens".  We sent out an email to let everyone know at the time..

1.8 On one of my test machines FE runs perfectly.  On another machine the window containing the File Explorer control croaks as soon as it opens.  Any ideas?
A user reported this and it turned out to be that he had an old version of the Windows "OLEPRO32.DLL" in his testing directory.  Once he removed that dll all was fine.

1.9 I've noticed that in my c55\3rdParty\examples directory there is one folder called "FileExplorer" and another called "File Explorer"...
Please delete the one called "FileExplorer" (one word), it is from an early version of File Explorer - sorry about that..

1.10 I'm getting an error message "Entry Point Not Found / procedure entry point could not be located in the DLL PWUtil.dll"
Your app is using an old version of the file called "pwutil.dll".  Use whichever version of this dll shipped with the version of File Explorer that you used when compiling the app.

1.11 I've heard that some Developers are using File Explorer with a Panel control rather than the Clarion OLE control, what's up with that???
This FAQ is no longer a recommended FAQ, since build 3.70 Gold you must change all old OLE controls to be PANEL controls or you will get compile errors.  Click here for more information on this and for instructions on how to do this.

1.12 Is it possible to use SetPosition to move a File Explorer Viewer control?  I can't get it to work...
Yes, but because of how we built File Explorer if you ever move or resize or hide or unhide the Panel control you need to tell File Explorer that you have done so, using our Resize method, as follows:
   SetPosition (?feControl, 50, 50, 200, 250)
   ThisViewer1.Resize()

FeBrowser FAQ's

2.1 When I try to browse a web page File Explorer does not "trigger" my "dial up networking" window!  It just says that it can't find the webpage.
Enable the Dial Up Networking features from your Global Extension options.

2.2 I need to implement Callback events for the feBrowser object, where do I start?
Have a look at the "Advanced_feBrowser_SimpleCallbacks" procedure in the feabc.app example application.

2.3 I need to know when the loading page is done.
Check the feDemo example application the Callbacks examples for the browser demonstrate the use of the DocumentComplete callback. Also see DocumentComplete in the feBrowser documentation.

2.4 Can I detect when the control is going to load a new page, then change the url so it navigates to a different page?
Yes!  How cool is that!  Have a look at the "Advanced_feBrowser_SimpleCallbacks" procedure in the feabc.app example application.  That example also shows how to simply cancel navigation to certain urls.

2.5 When I set ?feControl{prop:hide} the WebBrowser control is not hiding...
This is because unlike some of the File Explorer objects, the WebBrowser does not actually use the Clarion OLE control - we simply get window coordinates from its position and then create our own control "on top of it".  There are two methods which you can use to hide / unhide a File Explorer control, but they are not yet documented (work in progress).  See the feabc.app demo application's "Advanced_feBrowser_TwoViewers" procedure to see how to do this.

2.6 "My app is working great on hundreds of installations, except one PC, where calling the FE window GPF's the app!  Any ideas?"
A client reported this to me and all that fixed the problem was to have the client install all the latest IE critical updates from Microsoft.  The case mentioned above was an installation of IE 6.0.2800.1106, on a Win 2K box.

2.7 I'm using File Explorer to complete a form...  One of the text fields seems to be "un-settable"...
Use the feabc.app examples' "Accessing the DOM" example procedure to get a list of all the elements on the page.  If the element you're trying to set is of element type "file" in the list, it is actually an HtmlInputFileElement (the html around that field will look like this: <INPUT type="file"... ), which Microsoft seem to have made a read-only object since Internet Explorer 5.0, for "security reasons".  If anyone knows a way around this please let me know, otherwise there's not a lot that we can do here...

2.8 When I browse a webpage I get an "Internet Explorer Script Error" message popping up...  Can I stop this from happening?
Yes.  Have a look at the feBrowser::Update method, for the option called "SilentMode".

2.9 I have some html in a variable and I want the user to view it but not edit it.  Is this possible?
Absolutely.  At this stage only the feHtmlEditor object can load html directly from a variable (although we are working on the Browser).  You will need to use the feBrowser::VarToFile method to create a temporary file from the html in the variable, then use the feBrowser::Load method to load that temporary file into the File Explorer control.

2.10 Is it possible to disable the popup menu in Internet Explorer (i.e. when a user right-clicks on a page)
Yes.  There are two approaches to doing this.  The first approach involves implementing the IDocHostUIHandler interface, which we plan on doing in a future release (which would enable us to actually add items to the popup menu, but requires a fair amount of time to code).  The second approach is to simply use javascript.  The javascript approach works well, but will obviously require you to add some script to your html pages.  An example of how to do this can be found in the 3rdParty\Examples\File Explorer\Demo folder, as an html file called "no_popup_menu.htm".

2.11 In your feGoogle.app example you use File Explorer to fill in a search string and press the "Search" button on the Google site.  Can I send the search string "directly" instead?
Yes.  Use the Load method as follows:
ThisViewer.Load ('http://www.google.com/search?hl=en&ie=UTF-8&oe=UTF-8&q=%2BCapeSoft+%2BSoftware&btnG=Google+Search')

2.12 Does the feBrowser.Load method do a HTTP Post or a HTTP Get?
If you pass a string in the pPostData parameter the method will do a Post, otherwise it does a Get.

2.13 Is it possible to set which printer the WebBrowser control prints to without user intervention?
The PrintMe method prints the currently loaded document.  If you call PrintMe(false) the document goes straight to the default printer.  The only way we've found to change this behaviour (i.e. print to another printer) is by temporarily changing the default Windows printer.  This will affect other software so only do this is you really need to.  In the ThisViewer.PrintMe method, before the parent call, you would code as follows:

TempString = fe_GetRegValue ('HKEY_CURRENT_USER', 'Software\Microsoft\Windows NT\CurrentVersion\Windows', 'Device')
self.SetRegValue ('HKEY_CURRENT_USER', 'Software\Microsoft\Windows NT\CurrentVersion\Windows', 'Device', 'Fax602,winspool,FAX:')

and then after the parent call you need to restore the default printer to what is what originally, as follows:

self.SetRegValue ('HKEY_CURRENT_USER', 'Software\Microsoft\Windows NT\CurrentVersion\Windows', 'Device', TempString)

Note: This example will not work on all versions of Windows, a google search will reveal where the various versions of Windows store this setting in the Registry.

2.14 The GetInfo method can return the full html for the loaded page, using OuterHtml as the parameter I pass in.  What if I only want a certain part of the html (for instance, the '<body>' tag) ?
Get the full html using GetInfo, then use INSTRING to get what you need from that html.

2.15 I want to use FE to fill in a form on a website, but the page does not appear to have any elements.  Any ideas?
Use the feabc.app example's "feBrowser_DOM" procedure to get a list of the page's elements.  If no elements are listed, set the "frame" spinbox on that example to 1, then 2, then 3 etc to make sure there aren't frames.  Also right-click next to the fields you want to fill in, and choose "Properties" (in Internet Explorer) and check the URL.  Sometimes login screens load separate html pages "inside" the parent page - if this is the case use that address (URL).

2.16 I am getting crashes opening certain pages multiple times.
If you are having problems with pages crashing when closing and then reopening a web site then please make sure the setting on the FileExplorer Extension "Implement Delayed Close" on the "BrowseHTML" tab is on. This is now the default option, however for existing controls it should be set manually when needed.

FeHtmlEditor FAQ's

3.1 How can I get a "new page" when using the feHtmlEditor object?
Since version 2.4b, there is a method called NewDocument.  See the notes on that method.  The Html Editing buttons (control template) also started including a "new" button from that version, but you'll need to delete and repopulate the buttons if you populated them before version 2.4b.

3.2 Is it possible to load html into the feHtmlEditor control, where the html contains images???
Absolutely, bearing in mind that html is just text, and the html contains references to images which must be located somewhere "else" (hard drive, internet etc).  Have a look at the "Advanced_feHtmlEditor_TabAndRightClick" procedure in the feabc.app example; specifically at the code under the Load from Variable button.

3.3 I need to implement Callback events for the feHtmlEditor object, where do I start?
Have a look at the "Advanced_feHtmlEditor_TabAndRightClick" procedure in the feabc.app example application.

3.4 Does the FeHtmlEditor object allow me to save the html I'm editing to a database field?  I don't want to have to write to a file and then save that file in a database.
Yes.  Have a look at the "Advanced_feHtmlEditor_EditingFromVariables" procedure in the feabc.app example application.

3.5 Does the FeHtmlEditor have a "Save As" method?
Not as such.  It does have a Save method which takes a filename as a parameter though, which in essence makes the Save method both a Save and SaveAs method, depending on how you use it.

3.6 I'm sure my HtmlEditor control used to work, but now it doesn't...
This is probably becuase you bought File Explorer in the very early days, when we still used Clarion OLE for this control.  In those days, you could call the Load method for this control, and it would (usually) create the control, even if you hadn't called the Init method first (even though you should have been calling the Init method before you call the Load method, as the templates / docs have always done).  Since version 3.0 of File Explorer, you will HAVE to call the Init method before the Load method, or the Load method will not work.. ( The same applies to the NewDocument method ).

3.7 On Win 98 (second edition) Load happens before NewDocument!
Someone reported that under Win 98 second edition (only), the following lines of code...

ThisViewer.NewDocument()
ThisViewer.Load (loc:SomeVar, ?feControl, 1)

... actually didn't work, because the NewDocument method returned before the Viewer actually had a new document loaded, and so the Load method failed because there was no new document to work with by the time Load was called!  Version 3.0 of File Explorer (when we rewrote the Editor using COM) apparently fixed this..

3.8 Is there a way to check whether a page which I load has been edited by the user?
Use the GetInfo method immediately after loading the html page to get the OuterHtml property, which you can then save to a variable.  This variable can then be used as a "snapshot" of what the original html was, and can be compared against subsequent calls to the GetInfo method (OuterHtml) to see if the html has changed since the time you opened the page / set the snapshot variable.

3.9 On one machine the FE Editor Control just doesn't work at all, it won't even display...
The components that File Explorer relies on have been unregistered. You can reregister these components by doing the following:

1. Look for a folder named c:\Program Files\Common Files\Microsoft Shared\Triedit
   If it's there, it will have files in it named dhtmled.ocx, dtcrt.dll, and triedit.dll.
2. Register each of the DLL and OCX files in this directory.
   Here's how to register a file:
   1. Right click on it
   2. Choose "open with..."
   3. Click "Choose program..."
   4. Click "Other"
   5. Find regsvr32.exe. It is in your Windows\System or Windows\system32 directory.
   6. Click Open.



FePDF FAQ's

4.1 When I load a PDF file I get an error message saying "There was a version error trying to launch the pdf control, version error 6.x"
This was an incompatibility between FE and Internet Explorer 6.  Fixed in File Explorer version 2.5c.

4.2 I have the fePDF object on a tab.  Each time I select another tab then return to that one my document has disappeared!
This is an issue with the ole control.  In the future we will redo the PDF object from scratch (which will hopefully take care of this problem); but until then have a look in the feabc.app example app, at the "MultpileObjects_Example1" procedure which shows how to fix this until then.

4.3 The PrintMe method does not seem to work!
As documented <g>, this method only works if you set the "Use Acrobat 4" setting in the template.  See the docs.

4.4 I can't seem to view PDF files...
If you double-click on a PDF file in Windows Explorer does it open?  Can you view PDF files on your computer using Internet Explorer?  If not then the problem is with your Adobe Acrobat installation, not with File Explorer.  We can't use components that are not installed, or are installed but not working.  Try reinstalling Acrobat Viewer from adobe.com.

FeMedia FAQ's

5.1 When I type a filename into the Entry control and press the Tab key it loads, but if I press the Enter key nothing happens...
This can be fixed by simply deleting the feMedia control from the window, closing the window, reopening the window, and repopulating the feMedia control.

5.2 How do I know when a music file has finished playing so that I can load another one from code?
Have a look at the feabc.app example --> under the FeMedia menu there is an example of how to use the EventCallback method to watch for when songs finish playing.

NetTalk / FileExplorer FAQ's

6.1 I am using NetTalk and File Explorer to write an email program.  I'm having a problem getting something to work...
Have a look for the demo app called "fenetalk.app" that came with File Explorer.  It's a simple app showing the basics of getting File Explorer and NetTalk to "work together", demonstrating how to use NetTalk to send and receive emails, and File Explorer to view and edit the emails.

The undocumented feStorage Class FAQ's

7.1 I'm getting an error saying "Error opening new file; 5 - Access Denied" when using the Retrieve method over and over...
Upgrade to File Explorer 3.0 or later, and change your code as follows.  Although this class is no longer documented / supported, if you get stuck send me an email ().

ThisViewer1.Unload()  ! new method in FE 3.0

! here you would typically get the feBlobStorage record

if FEB:ParentID = feSF:RecordID  ! check range
  MyfeStorage1.Retrieve (FEB:BlobHolder, true, 1)
  ! etc. etc...

Examples

When you install File Explorer, several demo applications are installed in your C55\3rdParty\Examples\File Explorer folder.  These examples are outlined below.

"Demo"  - abc, feabc.app
This is the main example application.  It is our "bells and whistles" example, which shows off most of File Explorer's objects and features.

"Demo Legacy"  - legacy, feleg.app
This is similar to the feabc.app example, but is written using the legacy templates (not ABC), and doesn't show off nearly as many features as the feabc.app example.

"Google"  - abc, fegoogle.app
This example shows how to automate a Google search from within a Clarion app.  You enter a search string and click a button, and File Explorer will load google.com, enter the search string and trigger the search.  Quite cool.  Can easily be adapted for downloading bank statements, forex rates etc etc etc...
( The feGoogle.app example has been moved into the feabc.app. Please use that app instead. See the feBrowser_Google procedure in feabc.app. )

"Full Screen"  - abc, fullscrn.app
This example shows how to play a media file (movie) using the entire screen to show the movie.

"NetTalk"  - abc, fenetalk.app
This example shows the overlap between File Explorer and another CapeSoft product, called NetTalk (this app will not compile unless you own CapeSoft NetTalk, available here).

"Office Inside"  - abc, FeOi.app
This app demonstrates how to integrate File Explorer with CapeSoft Office Inside (this app will not compile unless you own Office Inside, available here).

"The Storage Example"  - abc, festore.app
Not really documented or supported.  Might revisit this app later.  Several Developers are using File Explorer in this way, which is why we wrote this app.  For more info click here.

"Hand Coded"  - abc, feWebBrwsr.prj
An example showing how to implement File Explorer in a hand-coded (no templates) project.  Absolute basic functionality.

"Hand Coded 2"  - abc, feWebBrwsr2.prj
Similar to the feWebBrwsr.prj example, but here we've added a status bar.

"Benchmark"  - abc, fetest.app
This example is used by us when developing the product to test stability and performance.  Here for your interest more than anything else.

The Storage File Example

 SECTION NEEDS TO BE REDONE

Many users have inquired about using the File Explorer controls to play media files "securely", without having to ship the actual media files with there final product.  The following example steps you through an example which does just this.  It uses a TopSpeed file to store media files (any format) in a blob field, using a standard clarion File-Browsing List Box control to maintain the file, and a new File Explorer control (button) to select media files and "attach" them to the currently selected record in the List control (one media file per record which you create in the TopSpeed file).  All of that can be done in minutes, without any hand-coding.  Then you create a button and embed 3 lines of code into it - this will load the media file "attached" to the currently selected record (in the List control) into the File Explorer MediaViewer control.

This works by creating a temporary file ("feTempFile") from the contents of the selected record's blob field (ie. the stored media file), and loading that temporary file into the File Explorer Viewer control.  The new File Explorer button which we use to select media files to "attach" to records in the TopSpeed file simply "imports" any file which you select into the selected record's blob field.  The result is an app where you can ship one TopSpeed file instead of several media files.  The single TopSpeed file can contain any number of media files, using any number of formats (AVI's and MP3's in a single file!).  You can then control access to the media files, preventing the user from simply viewing them using another program.  The only thing you need to control is the temporary file which is created, called "feTempFile".  You'll need to delete this file when your app closes.  Note that there is no file extension, so it is not immediately obvious to the end user what this file actually is.  Here we go...

TIP 1:  By the way, this example can be found in your C55\3rdParty\examples\FileExplorer\storage folder - called festore.app

TIP 2:  This code works well if the media files you are working with are of a reasonably small size (up to a few megabytes).  The code has been tested (Pentium 2, 128 MB RAM) with a 68 MB MPG file; importing the file in 13 minutes, and created the temporary file which loaded in 80 seconds.

This example evolved as several users needed it.  Although functional, it is not well documented and was added to the public release more for interest than anything else...  Please contact support@capesoft.com if you need if you need assistance.



Considerations if upgrading from a version earlier than 3.70 Gold

Version 2.9 Beta of File Explorer saw the first changes that made the product non backward-compatible.  After two years of evolution, we reached a point where our initial design was severely restricting future design, so we decided to clean things up and restructure File Explorer where necessary.  Below is a list of what we've changed, the compile errors you will see, and explanations as to why we changed certain things and what you need to do to get your code to work.  Version 3.70 Gold was the first Gold build in almost two years, and should see the end of changes that cause backward-compatibility issues.  Below is an outline of what you need to change in your applications if upgrading from an old version of File Explorer (prior to 3.70 Gold), and a list of compile errors you could get and how to correct the code that causes these errors.

We followed the instructions below to convert our feabc.app example app, which contains over 40 windows which host FileExplorer controls, it took 7 minutes to make all the necessary changes and get it to compile...

What you need to do to your existing apps that use a version of FE earlier than 2.9 Beta

1. Open each window (one by one) which contains a File Explorer Viewer control.
2. File Explorer would have populated an entry control on this window ( see "A" below )...
3. ...which will be "Use"-ing a variable called "fepath" ( see "B" below )...
4. You need to change this as follows:  If you only have one Viewer control on a window, change it from "fePath" to "?fePath1".  If you have more than one Viewer control on a window, change the controls as follows; "?fePath1", "?fePath2", "?fePath3" etc.  It doesn't matter if ThisViewer1 has ?fePath4 (although I'd recommend matching the use variables to the Object names to make the code cleaner), so long as each entry control has a unique use variable.



Compile Errors and how to fix them:

Compile Error 1

Error:
Syntax error: Unknown identifier: FEPATH
Syntax error: Unknown identifier: FE_APPPATH
Syntax error: Unknown identifier: FE_LASTPATH
Syntax error: Unknown identifier: FE_CURRENTPATH
Syntax error: Unknown identifier: FE_CURRENTCONTROL
Syntax error: Unknown identifier: FEHEIGHT1
Syntax error: Unknown identifier: FEWIDTH1
Syntax error: Unknown identifier: FEHTML1BUSYRECOVERING
Syntax error: Unknown identifier: FEPRIORLASTEVENT

Cause:
You have written code that makes reference to one of the above variables (Fe_AppPath, Fe_LastPath, Fe_CurrentPath or FePath ) which no longer exist.  Or, in the case of the FEPATH error, you need to run through the section above titled "What you need to do to your existing apps..."

Fix:
You need to replace any code where you refer to these variables with the new properties, as shown below:

Replace fe_AppPath with ThisViewer.fe_AppPath
Replace fe_LastPath with ThisViewer.fe_LastPath
Replace fe_CurrentPath with ThisViewer.fe_Path
Replace fePath with ThisViewer.fe_Path
Replace fe_CurrentControl with ThisViewer.fe_CurrentControl
Replace feHeight1 with ThisViewer.fe_Height
Replace feWidth1 with ThisViewer.fe_Width
feHtml1BusyRecovering (global variable) is no longer used, simply delete your code, it is no longer necessary.
fePriorLastEvent (global variable) is no longer used, simply delete your code, it is no longer necessary.

Note:  If your object is not called "ThisViewer" you will need to use its name instead.  You can find out what an object is called by clicking on the "Object" tab, from the "Actions" tab or your File Explorer control.  By default objects are named "ThisViewer1", "ThisViewer2" etc.

Compile Error 2

Error:
ASSERT: Procedure "(procedure name)" is using an OLE control, not a panel

Cause:
File Explorer started off using the Clarion OLE control.  Due to stability issues, we eventually moved all code in File Explorer to use the Plugware OLE container code, so File Explorer no longer uses Clarion's OLE control at all.  Any File Explorer controls that you added to your app prior to version 2.9 would have populated a Clarion OLE control onto your window, which now needs to be changed to a PANEL control.

Fix:
First, please backup your app.  Once you have done that, simply go to each procedure that contains an old File Explorer control (which still uses an OLE control, not a PANEL - the compile errors above will list which procedures contain the OLE controls), right-click on a procedure, choose Properties, then click on the ellipsis button immediately to the right of the Window button, this will let you edit the window definition for that procedure.  Look for the code that looks like this:

OLE,AT(114,101,299,135),USE(?feControl),#SEQ(17),#ORIG(?feControl)
END

This is the OLE control that needs to be changed to a PANEL control.  Simply delete the two lines of code (above), and replace them with this single line of code (note, all you're doing is changing OLE to PANEL, and deleting END) :

PANEL,AT(114,101,299,135),USE(?feControl),#SEQ(17),#ORIG(?feControl)

That's it!



Other changes you need to know about:

• We are no longer supporting the Background Media Load Button control template, please use the CallFe MadiaAPIMethod code template instead.
• Callback events are now done completely differently.  Please see the example apps and look at the EventCallback methods to see how this is now done.  Any code you have in the old callback event embed points will need to be redone, and will more than likely now be orphaned.



Internet Explorer Version Info

( This information was found at http://support.microsoft.com/default.aspx?scid=kb;en-us;164539 )

4.40.308	Internet Explorer 1.0 (Plus!)
4.40.520	Internet Explorer 2.0
4.70.1155	Internet Explorer 3.0
4.70.1158	Internet Explorer 3.0 (OSR2)
4.70.1215	Internet Explorer 3.01
4.70.1300	Internet Explorer 3.02 and 3.02a
4.71.544	Internet Explorer 4.0 Platform Preview 1.0 (PP1)
4.71.1008.3	Internet Explorer 4.0 Platform Preview 2.0 (PP2)
4.71.1712.6	Internet Explorer 4.0
4.72.2106.8	Internet Explorer 4.01
4.72.3110.8	Internet Explorer 4.01 Service Pack 1 (SP1)
4.72.3612.1713	Internet Explorer 4.01 Service Pack 2 (SP2)
5.00.0518.10	Internet Explorer 5 Developer Preview (Beta 1)
5.00.0910.1309	Internet Explorer 5 Beta (Beta 2)
5.00.2014.0216	Internet Explorer 5
5.00.2314.1003	Internet Explorer 5 (Office 2000)
5.00.2614.3500	Internet Explorer 5 (Windows 98 Second Edition)
5.00.2516.1900	Internet Explorer 5.01 (Windows 2000 Beta 3, build 5.00.2031)
5.00.2919.800	Internet Explorer 5.01 (Windows 2000 RC1, build 5.00.2072)
5.00.2919.3800	Internet Explorer 5.01 (Windows 2000 RC2, build 5.00.2128)
5.00.2919.6307	Internet Explorer 5.01 (Also included with Office 2000 SR-1, but not installed by default)
5.00.2920.0000	Internet Explorer 5.01 (Windows 2000, build 5.00.2195)
5.00.3103.1000	Internet Explorer 5.01 SP1 (Windows 2000)
5.00.3105.0106	Internet Explorer 5.01 SP1 (Windows 95/98 and Windows NT 4.0)
5.00.3314.2101	Internet Explorer 5.01 SP2 (Windows 95/98 and Windows NT 4.0)
5.00.3315.1000	Internet Explorer 5.01 SP2 (Windows 2000)
5.50.3825.1300	Internet Explorer 5.5 Developer Preview (Beta)
5.50.4030.2400	Internet Explorer 5.5 & Internet Tools Beta
5.50.4134.0100	Windows Me (4.90.3000)
5.50.4134.0600	Internet Explorer 5.5
5.50.4308.2900	Internet Explorer 5.5 Advanced Security Privacy Beta
5.50.4522.1800	Internet Explorer 5.5 Service Pack 1
5.50.4807.2300	Internet Explorer 5.5 Service Pack 2
6.00.2462.0000	Internet Explorer 6 Public Preview (Beta)
6.00.2479.0006	Internet Explorer 6 Public Preview (Beta) Refresh
6.00.2600.0000	Internet Explorer 6 (Windows XP)
6.00.2800.1106	Internet Explorer 6 Service Pack 1 (Windows XP SP1)
6.00.3663.0000	Internet Explorer 6 for Microsoft Windows Server 2003 RC1
6.00.3718.0000	Internet Explorer 6 for Windows Server 2003 RC2
6.00.3790.0000	Internet Explorer 6 for Windows Server 2003 (released)



Header / Footer Strings for IE Page Setup

 If you open Internet Explorer and click on "Page Setup" ("File" menu), then click on the question mark on the "Page Setup" dialog window's title bar, then click in the "Header" field, you should see a list of possible settings.

This list in IE 5.5 contains the following:



Using DebugView

"DebugView" by SysInternals is an application that lets you monitor debug output on your local system.  I use DebugView when developing because it gives an accurate picture as to what's happening in your code (as opposed to "messages" or "stops").  If you start your application (any application into which File Explorer is compiled) with the following command line parameters, debug output will be generated accordingly, which you can then monitor using DebugView.

MyApp.exe	same as MyApp.exe /fedebugoff
MyApp.exe /fedebugoff	almost no debug output
MyApp.exe /fedebugmin	minimum amount of debug output
MyApp.exe /fedebugmax	maximum amount of debug output

TIP: I'd recommend using debug output only when you're testing something.  It can be quite annoying for other programmers to work on a system where there are a dozen different apps generating debug output at the same time!  To make life easier, all File Explorer debug messages are prefixed with "FE", as shown below.  You can set DebugView to ignore all messages that do not contain "FE".  You will also take a performance hit when running an app with debugging turned on.



File Explorer and The Future (The "ToDo" List)

Top of the list

• JavaScript HTML editor integration (The HTML Editor has been deprecated in Windows Vista and is very old and non standard). New JavaScript HTML editors are flexible, powerful, open (FE will ship with a number of options and other can easily be dropped in). They only rely on Internet Explorer, so there are no additional dependencies. In additional they produce proper xhtml/css compliant code.
• Support for the Adobe JavaScript API, which provides full control over PDF object and the Adobe Reader interface provided by FileExplorer.

Middle of the list

• Passing HTTP headers and submit data in the feBrowser::Load method.
• Template needs to be updated / cleaned up - this is in progress, and many sections are complete.
• FeBrowser::SaveAs (fully automate, passing filename as a parameter) - can the image paths etc be changed to local drive and images get downloaded / saved accordingly??

Bottom of the list

• Complete and document the DUN options
• Obtain pixel size of an AVI / MPEG video
• Ability to position cursor within an html document (feHtmlEditor)
• Write code for Media Player 9 and above (new features available). These players are support by FE, and the object allows the version to load to be set.
• Can we control the size of the Internet Explorer "preview" window?
• Disable right-click popup menu on feBrowser
• See if we can increase the parameter value size for the StartIE function.  Reported that it currently only works to 255 characters for email body text.
• Setting IE page margins, as in "Update('PrinterLeftMargin', '0.5"')"
• New method?  HtmlInputFieldElement::SetFocus( )
• Set radio buttons from feBrowser - this appears to be a DOM issue, this has been documented using Javascript.
• Finish the "framehost\feframe.app" example
• Frame support for FeHtmlEditor - Obsolete object, to be replaced with a Javascript xhtml/css compliant editor.
• Completing popup windows (username / password)
• InsertText - add to bottom (like a footer)
• Setting the html encoding property (Unicode / Western European etc.)
• Compiling resources such as WAV files into the exe, and loaded into FE directly



File Explorer Version Numbers

Please ensure that you are using the latest release of File Explorer and all the current DLLs, including pwutil.dll. The bulk of all support requests regarding FE are a result of old DLLs, LIBs or source files.

pwutil.dll - version 2.5.0.0 (This file must be shipped with all FE application. It is backward compatible, so it is advised that you always ship the most recent release.)



All other files (binaries etc.) will reflect the current version number in the History section.
