CapeSoft Object Writer
Documentation

Download Latest Version JumpStart - Writing an Object JumpStart - Using an Object FAQ History
Installed Version Latest Version

Introduction

I recently set about writing my first Clarion object. It took a little time to come to grips with the new syntax and so on, but then I discovered that writing generic objects was pretty much a step back to the bad-old-days of handcoding everything. You have to manually create a header (.INC) file, you have to make sure it's kept in the right place, you have to make sure it points to, and matches, a source file - bottom line you have to do too much!

Now Clarion has the best text generation environment and language going. And we use it everyday to generate text which gets compiled into applications. So why don't we have a template for generating objects?

To understand a little of what this template does, it's necessary to understand a little of how the Clarion language works when it comes to writing generic objects that can be reused from application to application.

The Generic Object

The object itself consists of 2 files. One is the header file, which contains all the class definitions, and the other is the source file where all the methods (what we used to call procedures) are actually worked out. This header file and source file are then copied to the Clarion source directory - typically \clarionx\libsrc - and then used in an application. The prototypes in the header file, and the definitions in the source file have to match exactly.

The Object Writer Template

Sounds like a job for a template - and it is. Enter the CapeSoft Object Writer template. Firstly it's important to understand the goal here. The idea is to have a place where classes can be created, where the effort is spent writing the object, not trying to manage it.

When using the ObjectWriter template the object becomes part of the application - but with one major bonus - the code generated is still completely generic and can easily be incorporated as-is into other applications. So now you can write an object, and include its test program in the same application, then use the object in other applications without the test code overhead. This approach means a couple extra hoops need to get jumped through, but the extra effort up front is paid back when it comes to testing the objects.

The Object User Template

We've included a template which will help you to use the Classes that you create (and in fact any external class). You will be able to use this template to derive your methods and add specific properties and methods for that instance. You will be able to use this template as a starting point to turning your class into a product.

Some Definitions

One point to remember is that the Clarion IDE is designed to deal with Procedures and Functions and Modules etc. So some of the naming appears a little confused when we start talking about Methods and Properties etc. Don't get confused though. For example we'll use a Class "Procedure template" to create a class and a other "Procedure templates" to define methods. Think of these as Class and Method templates and mentally drop the word "procedure". I'll also talk about 'Class' modules and 'Method' modules. Basically Classes are stored in .Inc files (header files) and Methods are stored in special .Clw files (source files).

Installation

Running the supplied installation file will install Object Writer on your computer.

Important Note : One of the side effects of installing OW is that the IDE will now ask you for the Module Type whenever you add a new procedure.

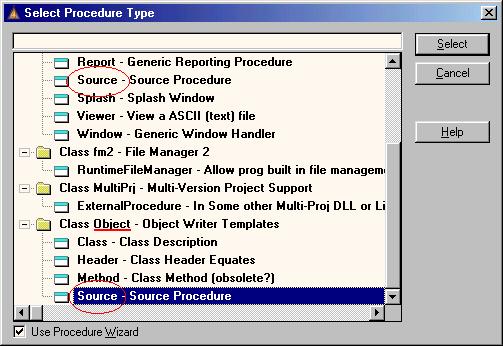

Select Module

Don't be worried, you always select Generated Source Module except when you're making a Method. We'll get to the Method making bit in a short while.

Jump Start Tutorial - Writing an Object

In this tutorial we'll make a small class to return the description of an event, and store the time and date it occurred. We'll use the basic settings, for more details, you can check out the template help section. I highly recommend working through this tutorial - it should only take about 20 minutes, and will take you succinctly through the concepts. You can copy the handcoded parts directly from this document. Hand code is displayed in a green courier font to distinguish it from instructive text.
  1. So - start off by opening your Clarion IDE making a new application with the following properties:

    application properties screenshot

  2. Select GENERATED from the tree module type tree that appears:

    select module type screenshot

  3. Click the Global, then the Extensions button to get to the Global Extension and Control Templates window.
  4. Click the Insert button and select the following template from the Select Extension window that appears:

    select extension screenshot
  5. Setup the following settings (you will need to set the Class Directory to point to the correct directory - if you don't use the clarionx\3rdparty\libsrc directory, then you will need to edit your redirection file to use this class in another application).



  6. Click the OK button on both the Extension and Control Templates window and the Global Properties window.
We will proceed to make the class module:
  1. In the Application tree window, click on the Module tab. Go to the Application menu and choose Insert Module and from the list of available modules select ClassModule from the Object template class.


  2. You'll see a module properties screen, rename the module to MyTest.Inc.
  3. Clear the Allow Repopulate Checkbox and click the OK button.
We will now proceed to make the method module:
  1. Go to the Application menu and choose Insert Module and from the list of available modules choose MethodModule from the Object template class.
  2. You'll see a module properties screen, rename the module MyTest.Clw
  3. Clear the Allow Repopulate Checkbox and click the OK button.
We will now add the Properties and Methods to the class:
  1. Highlight the MyTest.inc module in the module list tree.
  2. Choose New from the Procedure Menu and name the class MyTestClass and click the OK button.
  3. Select the Class - Class Description procedure template from the tree that appears.



  4. Enter MyTest.Inc into the Module Name field and check the This is a root class checkbox.
  5. Click the Properties button and use the Insert button to enter the following properties (which are just like data) for the class:



    For each property, simply enter the Property Name, and select LONG (or string) from the Property Type drop list. The other fields can remain unchanged. The LastProc string should be a string(255).
  6. Click the OK button to return to the Procedure Properties window.
  7. Click the Methods button and then the Insert button to enter the MyTestClass.TakeEvent method:



    Important Note: When prompted to choose the module to which each new method belongs, you should choose the Method Module instead of the normal GENERATED module. (The prompt won't appear for the first one).
  8. Repeat Step 7 to add the MyTestClass.GetEventName method.
  9. Click the OK button to return to the Procedure Properties window and again to return to the Application tree.
  10. The methods that you added on your normal application tree appear as ToDo procedures.
Now we'll code the necessary code to make the method work.
  1. Double-click on the MyTestClass.TakeEvent ToDo procedure and select the Source Procedure from the Class Object - Object Writer templates:



  2. Enter the following settings:



    Note: it is critical that all the Methods are assigned to the MyTest.clw module
  3. Click the Embeds button and click the Source button on the Embedded Source window.
  4. Enter the following code into the Processed Code embed point:

    if (clip(self.LastProc) = clip(pProcedure)) and |
        (self.LastEvent = event()) and (self.LastField = field())
      return(1) !This is the same as the last event
    else
      self.LastProc = pProcedure
      self.LastEvent = event()
      self.LastField = field()
      self.LastEventTime = clock()
      self.LastEventDate = today()
      return(0)
    end

  5. Exit and save, and return to the Application tree window.
  6. Repeat step 1 for the MyTestClass.GetEventName procedure.
  7. Enter the following settings:


  8. Click the Embeds button and click the Source button on the Embedded Source window.
  9. Enter the following code into the Processed Code embed point:

    case pEvent
    of event:accepted
      Return('Event:Accepted')
    of event:NewSelection
      Return('Event:NewSelection')
    of event:Scrollup to event:Locate
      return('Event:Scrolling')
    of event:MouseDown to event:MouseMove
      return('Event:MouseEvents')
    of event:VBXEvent
      return('Event:VBXEvent')
    of event:AlertKey to event:PreAlertKey
      return('Event:AlertKeyEvents')
    of event:Dragging to event:ScrollDrag
      return('Event:Drag&DropEvents')
    of event:TabChanging
      return('Event:TabChanging')
    of event:Expanding
      return('Event:Expanding')
    of event:Contracted
      return('Event:Contracted')
    of event:Rejected
      return('Event:Rejected')
    of event:DroppingDown
      return('Event:DroppingDown')
    of event:DroppedDown
      return('Event:DroppedDown')
    of event:ScrollTrack
      return('Event:ScrollTrack')
    of event:ColumnResize
      return('Event:ColumnResize')
    of event:Selecting
      return('Event:Selecting')
    of event:Selected
      return('Event:Selected')
    of event:CloseWindow
      return('Event:CloseWindow')
    of event:CloseDown
      return('Event:CloseDown')
    of event:OpenWindow
      return('Event:OpenWindow')
    of event:OpenFailed
      return('Event:OpenFailed')
    of event:LoseFocus
      return('Event:LoseFocus')
    of event:GainFocus
      return('Event:GainFocus')
    of event:Suspend
      return('Event:Suspend')
    of event:Resume
      return('Event:Resume')
    of event:Timer
      return('Event:Timer')
    of event:DDErequest to event:DDEclosed
      return('Event:DDEevent')
    of event:Move to event:Undocked
      return('Event:WindowSize&PositionEvents')
    of event:BuildFile to event:BuildDone
      return('Event:BuildEvents')
    of event:User to event:Last
      return('Event:User')
    else
      return('Event:Unknown')
    end

  10. Exit and save, and return to the Application tree window.
Before compiling, switch to the Module tab and delete any empty modules that the IDE may have created (abc002.clw, etc).

Compile your application, and you'll see your source files (MyTest.inc and MyTest.clw) in the Clarionx\3rdparty\libsrc directory.

Getting compile errors? Check out the compile errors section.

The application is still complete, so you need to continue with the next tutorial in order to see the full use of the Object Writer templates.

Jumpstart Tutorial - Using an Object in an application

Ok, so now you've written your object, how do you use it in another (or the same) application? Good Question! Let's keep going with our example tutorial application abc.app. In this tutorial, we'll look at deriving a class and adding our own code tailored for this application.
  1. Let's add this as a Local Object then:
    1.1. Double-click on the Main ToDo procedure to get to the procedure properties window and select the Generic window as the procedure type. Click on the Extensions button and click the Insert button on the Extension and Control Template window. Select the IncludeObject - Generic Object Extension to use a Local Object extension template and click the Select button.


  2. Fill in the name of your class header file (MyTest.inc) and you can enter an appropriate Class Author in the field provided.

    Tip: A class is only read once by the IDE (during a session). This means that the first time the class is entered, the author will be set there. Changing the author will not have an effect (on the embed placement) when the class has already been read.
  3. Select your class from the drop down Base Class list (MyTestClass). Set the Object Name in the field provided to a more descriptive name (ThisMyTest).
  4. We're going to derive this class, this basically means adding our own code (methods and properties) to the class - while making the use of existing coded methods and properties. Change to the Class Details tab and then check the Derive checkbox.


  5. Click the OK button to return to the Procedure Properties window. Add the following data to your procedure's local data:

    EmbedQ QUEUE,PRE(EQ)
    Event    LONG
    Name     STRING(40)
    Field    LONG
    Time     LONG
    Date     LONG
           END
  6. Open the Window editory and edit the window to look as follows:



    (Use the Queue from Step 5 for fields in the List Box and the Close window template for the close button)

    Quit the Window editor.
  7. Open the Embed tree (by clicking on the Embeds button).

    Find the Local Objects | Capesoft Objects | ThisMyTest (MyTestClass) TakeEvent | ParentCall embed point:



    and add the following code (to populate the code to the queue):

    EQ:Event = event()
    EQ:Name = self.GetEventName(event())
    EQ:Field = field()
    EQ:Time = clock()
    EQ:Date = today()
    add(EmbedQ)
  8. Continuing in the Embed tree, find the Local Objects | Abc Objects | WindowManager (WindowManager) | TakeEvent | Top of CYCLE/BREAK support embed point and insert a source embed with the following code in it:

    if ThisMyTest.TakeEvent('Main') .
  9. Save and quit back to the application tree.
  10. Compile and run the application.

Turning your class into a product

You can now write your own class using ObjectWriter (based on the approach used in the tutorial above). Once you've made your class you can use the ObjectUser template (ObUser.tpl) as a starting point to making your own template/class product set.
  1. Open the ObjectUser template in the source editor.
  2. There are two extension templates to populate your class - one for local and the other for global class population (IncludeObject and IncludeObjectGlobal). Cut the extension template out that you will not require. (In this case, each template starts with #Extension and ends on the line before the next #Extension of #Group)
  3. You can fix (and in fact hide the author) to your own name/ the name of your company as follows:

    Find all instances of the template variable %ClassAuthor and change it to your company name.

    Remove the prompt to set the company name. You can delete the following lines from the template group:

    #boxed('')
      #prompt('Class Author:',@s255),%ClassAuthor,default('Capesoft')
      #display('If you change the Author, you''ll need to close')
      #display('and re-open the IDE to get the Embed tree correct.')
    #endboxed
  4. You may want to move all the class details onto the Class Details tab (i.e. the Class header filename, the Object name and the BaseClass).
  5. If you want to generate code into some specific derived method, you can code this into the template as follows:

    #AT(%dMethodCodeSection,%ActiveTemplate & %ActiveTemplateInstance ,'TakeEvent (string pProcedure),long ,VIRTUAL') ,priority(2500) ,DESCRIPTION('Generate Code Before the Parent Call') ,where(%NoObUser = 0)

    !Place generate code here
    #ENDAT


    In this case the MethodID of the above embed point is 'TakeEvent (string pProcedure),long ,VIRTUAL'. You will need to know the MethodID for the embed point where you are wanting to embed you code. The way to do this, is to place the following in the template (red is the code you must insert into the template):

    #AT(%dMethodCodeSection,%ActiveTemplate & %ActiveTemplateInstance,%dMethodID),priority(5000),DESCRIPTION('Parent Call'),where(%NoObUser = 0)

    !%%dMethodID = %dMethodID|
      #INSERT(%ParentCall)
    #ENDAT

    When you generate your code the next time, then you will see your method procedures all listed in the clw that is generated (for that procedure) and the name of the methods in there as follows:

    ThisMyTest.TakeEvent PROCEDURE (string pProcedure)
    ReturnValue long
      CODE

    !%dMethodID = TakeEvent (string pProcedure),long ,VIRTUAL|
        ReturnValue = PARENT.TakeEvent (pProcedure)
        Return ReturnValue
The ObjectUser template makes use of the object01.tpw to read the header file and make the necessary embed points and declare the classes. You need to ship this file (as is) with your template.

Some more about the Templates

The Global Object User Extension Template
The Local Object User Extension Template
The Global Object Writer Extension Template
Creating New modules in your application
Creating a new class
Turning your ToDo methods into procedures
What happens when you compile

Using the Global Object User Extension Template

The purpose of this template is to enable you to include an object easily into your application. This template provides embed points where you can insert code into derived methods, and allows you to easily add new methods and properties to the class.

Adding the template

  1. Open your application in the Clarion IDE.
  2. Click on the Global button and then the Extensions button.
  3. Click the Insert button and select the IncludeObjectGlobal - Generic Object Extension to use a Global Object extension template and click the Select button.
Check out the What the Template prompts mean section below.

Using the Local Object User Extension Template

The purpose of this template is to enable you to include an object easily into a procedure. This template provides embed points where you can insert code into derived methods, and allows you to easily add new methods and properties to the class. You can easily access the Embed points directly from the Local Extension (via an Embed button).

Adding the template

  1. Open your application in the Clarion IDE.
  2. Double-click on the procedure where you would like to add the object.
  3. Click on the Extensions button on the Procedure Properties window.
  4. Click the Insert button and select the IncludeObject - Generic Object Extension to use a Local Object extension template and click the Select button.

What the Template prompts mean

  1. If you check the Disable Object from being Generated checkbox, then no code will be generated from the extension template.
  2. Fill in the name of your class header file without quotes. After this is entered, the template will read the header file and extract the class and method names from the header file.
  3. If you are working on the Class as you are compiling, then you may want to check the Re-read class file with every source generate in order to keep the class information upto date with the INC file (this is forced on for Object Writer applications). Otherwise the class file will only be read once in a session.
  4. You can enter an appropriate Class Author in the field provided.

    Tip: A class is only read once by the IDE (during a session). This means that the first time the class is entered, the author will be set there. Changing the author will not have an effect (on the embed placement) when the class has already been read.
  5. You can set the following for Mutli-DLL applications. If the class is included in another DLL, then there is no need to include the INC file (containing the class) in this application as well. In this case, check the Class file included in another app checkbox. If this is the Data-DLL and you want to export the object to the other applications, then check the Export this object and include the EXP file, so that the necessary export will be generated.
  6. Set the Object Name in the field provided to a more descriptive name.
  7. Select the class from the drop down Base Class list. This list is a list of the classes contained in the header file. If there is only one, then there will only be one in the list. If the file you entered does not contain any classes (or is not a valid header file) then this list will be empty. You can check the Manually enter the class to enter the class manually. This is particularly useful for ObjectWriter apps where the app generates the class (so the INC file has not initially been compiled).
  8. Change to the Class Details tab


  9. Check the Derive checkbox to derive this class. This basically means we'll be adding our own code, methods and/or properties to the existing class - while making the use of existing coded methods and properties.
  10. You can use the Embeds buttons to get to the embeds pertaining to this class to add code to derived methods (and to new methods) (Not available in the Global Extension template).
  11. The New Class Methods and Properties buttons can be used to add new methods and properties to this class. The new methods will have embed points placed in the object tree, which you will be able to access via the Embed buttons, or via the normal source editor.
  12. You can use the checkboxes in the Other Attributes group to add other attributes to your class. The STATIC option is only available for local objects, while the THREADed and EXTERNAL options are only available for Global objects.

The Global Object Writer Extension Template

To allow your application to correctly generate objects you need to add the ActivateObjects extension template to your global extensions in your application. To do this...

Creating new Modules in your application.

Before you can create a class, and its methods, in your application, you need a Class Module and a corresponding Method Module. These are the modules where the classes and their methods will be stored. Each method will become a 'procedure' on your app tree.

You can store more than one class in the same Class module (and hence methods from more than one class in the same method module). In fact my recommendation is that you store all the classes in your app together in a single module. In other words all the Method procedures, for 1 (or more) classes, will be stored in the same module.

Tip : Before proceeding, click on the Module tab to get yourself into the Module perspective of the IDE. The following steps will then make more sense since, from the Procedure tab's perspective, the created Modules are not visible.

To create a Class Module:
  1. Go to the Application menu and choose Insert Module.
  2. From the list of available modules choose ClassModule from the Object template class.
  3. You'll see a module properties screen, rename the module to something that describes all the classes to be grouped within it - for example TestClasses.Inc.
  4. Make sure Allow Repopulate is clicked OFF.
  5. Enter equates and special data types for the .INC file in the provided embed point. (If this instruction doesn't make sense - don't worry! You'll come across this facility when you need it. It's optional...)

    Tip : The Embed point may not become active straight away. If so, close the app, open it again, and you should have access to the embed point.
  6. Click on Ok to save the new module in your application.
At this point we've just created the Class module. We'll add Classes to in in a later step.

To create a Method Module:
  1. Go to the Application menu and choose Insert Module.
  2. From the list of available modules choose MethodModule from the Object template class.
  3. You'll see a module properties screen, rename the module to the same as the corresponding Class module - except that the class module has a .INC extension, and the Method module has a .Clw extension. For example TestClasses.Clw
  4. Make sure Allow Repopulate is clicked OFF.
  5. The method module has a map embed point and a data embed point. Use these to enter prototypes of external functions required by your object, and data (not properties) required by your object. (Again this is an optional advanced feature. When you need it, you'll know!)

    Tip : You may not be able to access the embed points straight away. If so, close the App and open it again.
  6. Click on Ok to save the new module in your application.
Now you've created the Method module. Later on methods will appear as ToDo's and will appear in this module.

Creating a new Class

Each class contains Properties (what we used to call data) and Methods (what we used to call procedures). To create a new class and define it's Properties and Methods do the following...

Tip : Before proceeding, click on the Module tab to get yourself into the Module perspective of the IDE, then highlight the Class Module (with the .INC extension) to which the new Class is to be added. This will automate and simplify some of the steps below
  1. Make sure you have created a Class Module following the steps above.
  2. Choose New from the Procedure Menu. (Remember don't get confused - we're adding a class not a procedure but Clarion doesn't know that yet)
  3. Give the class a name (for example TestClass1) and click on Ok.
  4. Select the Class - Class Description procedure template.



  5. Make sure the Module Name is correct - select from the list to find the correct Class module if it isn't.
  6. If this class has a Base Class, i.e. a class that you're inheriting from, then select that from the available list. Make sure you choose a genuine Class here. If the base class is not defined in this OW application then you can enter it as an External Base Class. In this case you need to manually enter the name of the class, and the class module (.inc) where the external class is defined.
  7. Use the new Properties button to enter all the properties for the class. Remember Properties are just like Data.
  8. Use the new Methods button to enter all the Methods for the class. These must be entered in the format Class.Method So for example if you just created the class TestClass and it has a method Start then you would enter TestClass.Start as a method name. If the method is a Virtual method then select the Virtual switch for that method.

    All the methods (including Virtual methods) will immediately appear on your normal application tree as ToDo procedures. (This is best viewed from the Procedure Tab perspective)

    Important Note : As you add these methods you will be asked which module they belong to. This is the only place where you choose to use the Method Module instead of the normal GENERATED module.
  9. Click on Ok to save the new class in your application.
  10. Repeat these steps to add additional classes. You can store multiple classes together in the same module, or you can use different modules.

Turning your ToDo procedures into Methods

You should never need to create a method using the Procedure New menu option as they should be defined in the Methods button when you create or edit the Class. They will appear on the application tree, attached to the Class definition as ToDo procedures.

We also discovered that it's possible to use the existing templates, other than the Source template, when it comes to creating Methods. This is a real bonus because if, for example, your method has a window, then you can use the normal Window procedure template to write the method. We haven't gone down this road much yet though, and although it appears to work (for the Window template anyway) you do get a compile warning (which you can ignore). We haven't tested yet with other native ABC templates - e.g. the Browse or Report templates.

Regardless of which one you pick, you need to do the following...
  1. Make sure the Module Name is the name of the Method Module that is related to the relevant Class module - for example TestClasses.Clw. Depending on your CW settings, Clarion may or may not have put it in the right place for you.
  2. Optionally enter a prototype and parameters as you would for any normal procedure or function.
  3. Optionally enter data and code for the method in the provided embed points.
  4. Click on Ok to save the method.
NOTE : After changing all your ToDo's to be methods you may end up with empty modules in your APP which will cause the compile to fail. This is normal. Simply go to the Application menu and select Delete Empty Modules to correct this.

What happens when you generate and compile

When you generate your code the Source module and Header file for your object(s) are automatically created.

If you are creating an ABC object then they are generated into your \ClarionX\Libsrc directory - not your application directory.

If you are creating a non-ABC object then the modules will be generated into the directory specified on the global extension.

When you compile your application then the objects, as well as any other normal procedure templates are compiled in the normal way, and the normal exe is created (assuming you don't have any errors of course). In this way you can test your object without having to leave the application. However when the object is used in other applications, only the object source code and header files will be used - not the rest of the application.

Advanced : Creating Polymorphic (Overloaded) Methods

One of the features that OOP supports is having 2 (or more) methods in the same class, with the same name, but which take different parameter lists. For example in the ABC classes the method ADDITEM is used often more than once in the same class, but with different parameter lists.

In the IDE you can't just create these polymorphic methods, because the IDE requires that each "Procedure" (method) has a unique name. So I've added a little trick to overcome this limitation, and still allow you to have polymorphic methods.

Advanced : Distributing Objects as DLL's

If you make an ABC compliant class then you have to distribute it as source code - ie a CLW and INC file. In this case the Class is perfectly useable in a Multi-DLL project as it becomes part of ABC which is certainly Multi-DLL.

You can also distribute non-ABC classes by distributing the CLW and INC files.

In certain situations however, if you are not willing to distribute your source code then the best method of distribution is to compile the Object as a DLL. You still have to distribute the INC file (this allows other APP files to use your Object) but you don't have to distribute the code in the CLW file.

In order to have this process fully automated you will need to use Object Writer in conjunction with CapeSoft's Multi-Proj product. Check out www.capesoft.com\accessories\multiprjsp.htm for more details.

In the sections below the APP file referred to is the APP containing the source for your Object.
  1. 1. The first step is to go to the global Object Writer extension and;

    i. Tick Off the setting To be included in the ABC Classes Chain.
    ii. Set the Class directory. Tip : to make the class generate in the same directory as the APP file set this to .
    iii. Set the Members on for Classes switch Off.
  2. The second step requires the use of the Multi-Proj template.

    i. Add the Multi-Proj global extension to the APP file, if it isn't already there.
    ii. On the General Tab is a section entitled Object Writer Apps Only. Click On the switch Export Object Writer Classes.
    iii. The DLL you are going to create can either export Just the classes themselves, or the Classes and any other Functions you may have. If you want to export just the Classes then click On Only Export Object Writer Classes.
  3. Add Versions to your Multi-Proj Extension in the normal Multi-Proj way.

Compile Errors

1.

This error message means that your Method (GetEventName) is in a different module to the class definition. Go to the procedure properties (of the GetEventName procedure) and change the Module Name to that of the class (in the example it is MyTest.clw).

2.

This message means that you have not deleted an empty module. In the application tree, click on the Module tab and delete the empty module. This is caused by adding a new method and moving the method into the class module, but omitting to delete the method that Clarion automatically created for it.

3.

This error probably means that you have not entered the class.method name correctly when you created a new method. Go to your Class procedure properties window and click on the Methods button. Make sure that you have included the complete Class name in all the methods in the list.

4.

This error is because the class is compiled into a directory that is not pointed to in the RED file. You need to either edit your redirection file (to point to where the class being compiled into) or change the location of where the class files are compiled into.

5.

You can get this error when you create a new object based on an external class, but you don't put in the base class module.

Frequently Asked Questions

Q1. When I rename a class method, Clarion creates a new method with the new name as a To Do and puts the old-named method somewhere outside the class.

Answer: Rename it in the application tree rather than in the class and it will be automatically changed in the Class.

Q2. When I use my object in an application I get a GPF as soon as my Program runs.

Answer: You may have added a Unique Project Define to your object application (in your Object Writer Extension template), but you have not added that Define to your Project of your application.

ProjectDefine => 0

Q3. What must I change in my Clarion.RED file to make sure that Clarion can include my object?

Answer: Open your clarionx\bin\Clarion5.RED, c55ee.RED, c55pe.red, c60ee.red or your c60pe.red file in a text editor. The RED file is in an INI-type format. It has sections (indicated by a string encapsulated in square brackets - like [Common]). You need to edit/add the following lines:

[Common]
*.INC=D:\C55\3RDPARTY\Libsrc
*.CLW=D:\C55\3RDPARTY\Libsrc


to

[Common]
*.INC=D:\C55\3RDPARTY\Libsrc;MyClassPath
*.CLW=D:\C55\3RDPARTY\Libsrc;MyClassPath


where MyClassPath is the path where your object resides.

Q4. I want to change the color of my object embeds - how do I do this?

Answer: This is done in the Setup | Applications Options menu on the Embed Tree Options tab:



Q5. I want to use a Queue as a property in my class. Is this possible?

Answer: Not directly. In order to add a Queue as a property, we need to do something a bit fancy, because you are not permitted to have a Queue as a property, but you are permitted to have a pointer to a variable type. So we'll declare the QueueType outside the Class definition and create a property based on that queue type.
  1. Open your class application in the Clarion IDE, and double-click on the Class (in the Procedure tree).
  2. Click the Embeds button and double-click the Before Class declaration embed point.
  3. Add the following source code:

    YourQ      Queue,type
    <Queue fields>
                end

  4. Save and exit and then click the Close button to return to the Procedure Properties window.
  5. Click the Properties button again, and add a property with the following attributes:

    PropertyName = YQ
    Property Type = Other
    Other DataType = &YourQ
  6. Click OK a couple of times to return to the Procedure Properties window.
Q6. I can't see the Embed buttons in the Object User Global Extension template.

Answer: This is a Clarion limitation. You cannot access the embeditor (which is the route that the embed buttons take). You need to go to the Global embeds and edit your derived source from there.

License & Copyright

This template is copyright © 2013 by CapeSoft Software and Stealth Software cc. Although it is Freeware, it is not Public Domain. The OWx.Exe distribution file may be distributed freely, however none of the individual files including Object.Htm and Object.Tpl may be distributed individually or in an altered state.

This product is provided with absolutely no warrantee or guarantee whatsoever. Use it entirely at your own risk. Use of this product implies your acceptance of this, along with the recognition of copyright stated above. In no way will CapeSoft Software, Stealth Software cc, their employees or affiliates be liable in any way for any damages or losses you may incur as a direct or indirect result of using this product.

Acknowledgments

Support

CapeSoft Support
Email
Telephone+27 21 715 4000
Fax+27 21 715 2535
PostPO Box 511, Plumstead, 7801, Cape Town, South Africa

Version History

Download here

Version 2.17 - Released 13 September 2010 Version 2.16 - Released 10 November 2008 Version 2.15 - Released 11 January 2006 Version 2.14 - Released 10 January 2006 Version 2.13 - Released 6 January 2006 Version 2.12 - Released 2 December 2004 Version 2.11 - Released 3 September 2004 Version 2.10 - Released 1 September 2004 Version 2.09 - Released 13 July 2004 Version 2.08 - Released 3 June 2004 Version 2.07 - Released 2 March 2004 Version 2.05 - Released 4 December 2003 Version 2.04 - Released 28 November 2003 Version 2.02 - Released 27 October 2003 Version 2.01 - Released 21 October 2003 Version 2.00 - Released 4 September 2003 Version 1.65 Version 1.5 / 1.55 / 1.6 Version 1.15
