NetTalk WebServer - Using Reports in a Webserver Application

Introduction

There are various way to approaching printing in a WebServer application.

Firstly it should be remembered that the printing is a function of the browser. Which means that any page your application delivers is intrinsically a report. The user can click on the browser print option at any time. By careful design, and attention to the information you are presenting, you can make many "reports" obsolete.

There are times though where a specifically formatted document is necessary. In these cases HTML doesn't necessarily offer the degree of control that you need. The best option in this situation is to create a PDF file, and have the browser display this.

Since Clarion 6, Enterprise Edition contains a Report-To-PDF extension, this seems like a good place to start. You can take existing report procedures in your application, and with minor additions make it generate a PDF file, and also allow the NetTalk WebServer to send the PDF file to the browser. PDF makes an excellent format for this sort of thing because most browsers already know how to display a PDF and you have 100% control over how the page will be displayed, and importantly 100% control over how it will look when printed.

If you don't have Enterprise Edition, then there are other third-party tools that can be purchased that do a similar thing. Support for PDF-Tools by Tracker software, and wPDF by Klarisoft are both supported "out the box". In addition a generic template is provided so that support for other engines can be added with a minimal amount of code.

Adding SoftVelocity PDF functionality to your report

Clarion 6 Enterprise Edition includes functionality to turn an existing report into a PDF file. If you only have Clarion 6 PE then this is available separately.

Example 13 (ABC), and Example 38 (Legacy) in the list of NetTalk Web Server examples are examples of doing this.

Note Legacy Templates: In order to use the SV PDF Global Extension you will need to go to Global Properties, Classes Tab, And tick on the option "Enable the use of ABC Classes. This explanation assumes you have a report procedure already, based on the normal Report template.
  1. Add the Report to PDF Global global extension to your application.
  2. In the report procedure, go to extensions. You'll see the Report to PDF extension already there.

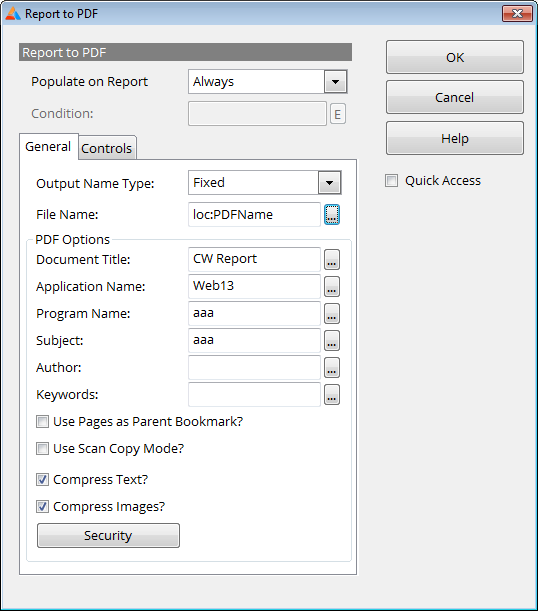

    Change the OutPut Name Type to Fixed.
    Set the File Name to Loc:PDFName.
    You can set the other settings for this extension as you like. (See SV docs and help files for what the extension can do).



  3. Add the NetTalk extension NetWebReportABC (NetTalk Extension to report procedure with SV PDF Generator) to this procedure. The extension works with both ABC and Legacy reports. There are slight variations of this extension name for CPCS and FRB reports.

  4. On the properties screen for the procedure set the Prototype to

    (<NetWebServerWorker p_web>)

    and (if in Clarion 8) set the Parameters to

    (<NetWebServerWorker p_web>)

    In Clarion 9 and higher the parameters will set themselves based on the prototype.

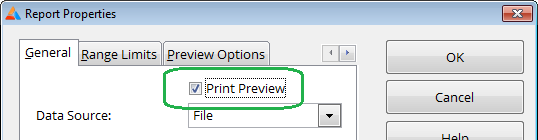

  5. Note: Make sure the Print Preview functionality for the report is turned ON. The PDF engine requires this. The NetTalk template will suppress the actual preview though - since the preview would appear on the server (where no-one is looking.)


  6. Click on the Project menu and select Generate All.

Now that your report procedure is ready, all you need to do is link it from a web page.

In the example, the report procedure is called MailboxesReport. The menu for this application is in the PageHeaderTag procedure. One of the menu items there calls the report (by setting the URL to 'MailBoxesReport'. Also notice that the Target is set to '_blank' which will cause the finished PDF file to open in it's own browser window.

It's also possible to make the report appear inside a NetWebForm - read the sections below for more information on that.

Adding PDF-Tools functionality to your report

An alternative to the built-in Clarion Enterprise Edition PDF functionality is PDF-Tools SDK, from Tracker Software. Although this can no longer be purchased, users with existing copies can continue to use it in any version of Clarion.

Example 14 in the list of NetTalk Web Server examples is an example of using this to generate the PDF files.

  1. Add the Global template "PDF-Tools Report Global Extension 4.1" to your application.
    The default settings for the extension should be fine.

  2. Add the PDF-Tools local extension to the report.

    The defaults will be inherited form the Global Template. Most of the defaults are fine, however make sure the following items are set correctly:

    General Tab:
    Set FileName to !loc:PDFname

    Previewer Tab:
    Generate PDF: Yes - Always
    Show Generate PDF: No - Never
    PDF Viewer Option: None
    Run Print Previewer: No - Never
    Print Hardcopy: No - Never
  3. Add the NetWebReportABCxc41 (NetTalk Extension to report procedure with PDF-XChange Generator 41) to the report procedure you wish to add PDF output to. (There are slight variations of this extension name for CPCS and FRB reports.)
  4. On the properties screen for the procedure set the Prototype to
    (<NetWebServerWorker p_web>)
    and set the Parameters to
    (<NetWebServerWorker p_web>)

  5. Click on the Project menu and select Generate All.

Now that your report procedure is ready, all you need to do is link it from a web page.

In the example, the report procedure is called MailboxesReport. The menu for this application is in the PageHeaderTag procedure. One of the menu items there calls the report (by setting the URL to 'MailBoxesReport'. Also notice that the Target is set to '_blank' which will cause the finished PDF file to open in it's own browser window.

It's also possible to make the report appear inside a NetWebForm - read the sections below for more information on that.

Adding wPDF functionality to your report

Adding Other PDF functionality to your report

While there are three popular PDF engines used in Clarion reports, you may be using another engine to the ones directly supported above. A generic template is provided which will add most of the functionality you will need to support any engine. some hand-code will generally be required though to handle the specifics of your engine. This section attempts to explain the report/PDF process in general terms, so you will more easily be able to figure out what embed code is needed to support your engine.
  1. It is assumed that the global extension (if one exists) and the local extension (if one exists) for your engine has been added to the report in the normal way. The goal is to have the report procedure generate a PDF file, and then add NetTalk code to serve that file to the browser.
  2. Add the NetWebReportGeneric (Generic NetTalk Extension to report procedure) to the report procedure.
  3. On the properties screen for the procedure set the Prototype to
    (<NetWebServerWorker p_web>)
    and set the Parameters to
    (<NetWebServerWorker p_web>)
  4. Set your engine to generate a PDF file, and have it use the name of the file which is stored in loc:PDFName.
    In other words, NetTalk will populate loc:PDFName with a specific value, and that is the name (and location) of the PDF file that the engine must create.

Report Progress Bars

NetTalk 6 introduced the ability to display a progress bar when a Report (or any other sort of file) is being created. This gives more feedback to the user in cases where the generation of the file may take some time. Rather than display a blank page until the file is completed, a progress bar is displayed. Once the progress bar reaches 100%, the bar is replaced with a URL which the user can click on to download the file.

Progress Bars work in conjunction with a Button control. They are designed to be used when a task is started (by a button) that may take some time to complete. This task is almost always the creation of a file, perhaps a PDF Report file, or an Excel spreadsheet, or something like that.

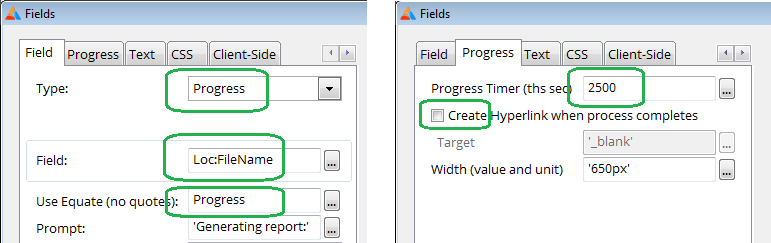

  1. First add a Progress Control to a form.
    Create a local variable (say Loc:fileName) to hold the name of the PDF.
    Make sure the field has an Equate name (we'll use that again in a moment.)
    Set the timer to an appropriate number. The value is in thousandths-of-a-second so setting it to 1000 = 1 second. Bear in mind that frequent progress bar updates place a load on the server, so don't be too aggressive with this number.



    You can choose to leave the Create Hyperlink option on or off. If it is on then a hyperlink will be created, with the newly created filename when the report is completed. The user can then click on the link to download the file. If you set the target to '_blank' then the report can be opened in another tab. The user can also save the report to disk.

    If this option is left off then no hyperlink will be created, presumably because you are going to display the PDF directly on the form. (See step 4 below for more information on doing that.)

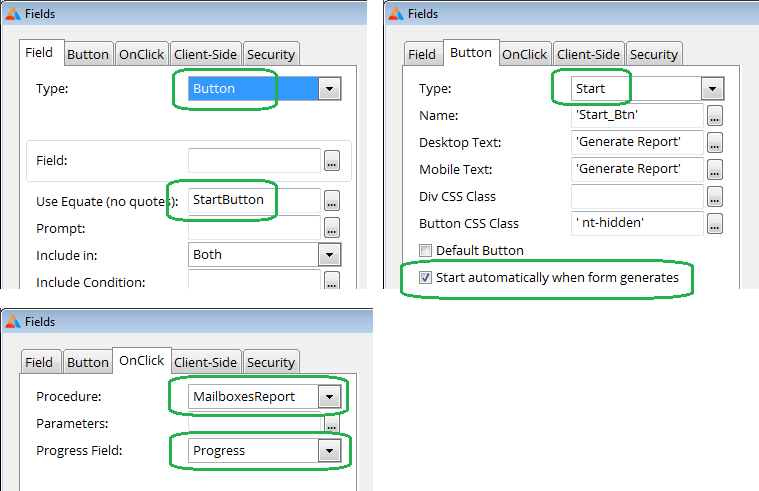

  2. Second add a Start Button to the form. This is what the user will click to Start the action. Set the button to be of type START, give it a name, and put some text on the button.

    If you want the report generation to begin immediately when the form opens, then tick on the option, on the button tab, Start Automatically when Form Generates.



    On the OnClick tab set the Procedure name, and the Progress Field options.

Adding the Resultant (PDF) directly to the Form

NOTE: To use the media control on a procedure the Media Script needs to be included in the program. This script is off by default, so make sure it is on by going to the WebServer procedure, NetTalk Extension, Scripts tab, and make sure it is on.

To add a PDF directly onto the form takes two steps. A Media control is added to the Form, and the Progress Bar control is updated to refresh the media control when the report is ready.

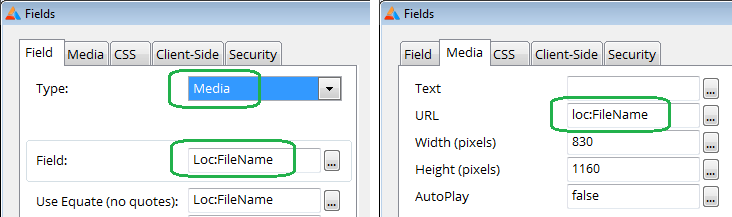

  1. Add a Media field to the form. Set the Field, and URL settings to be the same as field used earlier for the Progress control.

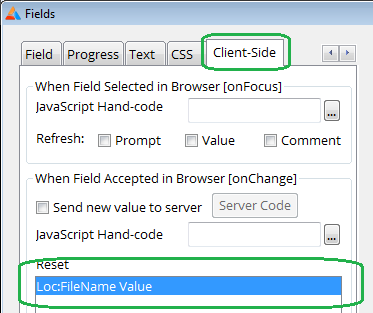

  2. Add the Media field to the Reset List of the Progress Control



    this means that when the Progress Bar completes (ie gets to 100%) the Media field will be refreshed. Since Loc:FileName (which is the FIELD of the media control) contains the PDF file name, the media field thus displays the PDF.

Updating the Progress Bar From a Procedure

Report procedures  (with the NetTalk Report extension) will automatically include the code necessary to update the progress bar. The progress of the report is taken from the same progress bar that would normally appear if the report was called from a windows program.

If you have a hand-coded procedure, which is generating a file, then you can add the following to it so that it also supports the progress bar.

a)  Make sure the procedure has (NetWebServerWorker p_web) as the first parameter.

b)  When the procedure starts make a note of the Progress Bar Name, and store this in a local variable
loc:ProgressName = p_web.GetValue('_ProgressName_')

c) Put the following code when your procedure starts;
p_web.SetProgress(loc:ProgressName,1,'')

d) During the creation of the file update the progress by calling
p_web.SetProgress(loc:ProgressName,xxx,'')
where xxx is a number from 1 to 99.

e) when the file is completely generated, and ready for download call
p_web.SetProgress(loc:ProgressName,100, url)
Where url is the filename relative to the Web folder. Note this isn't the "full path" of the actual filename, only the part relative to the web folder. This name will be the URL that the user clicks on to download the generated file.

TIP: Remember a file which start its name with the characters $$$ will be deleted after a single download.
