File Explorer Classes - feEditor

The feEditor class is new in FileExplorer 5 and replaces the (now deprecated) feHtmlEditor class. As much as possible this class maintains backwards compatibility with the existing class, so all the old methods should continue to work. In the Beta version of FileExplorer 5 not all backward compatibility is complete, so a number of the old method may have issues. If you find a method that is not working as expected please report it to us. The documentation for the old feHtmlEditor class is still available. Getting Started (Important) When adding the new editor control, you should delete the additional control populated by the template (the path, prompt and lookup buttons). All that is needed is the Panel control which will be used to position and size the editor. You must copy the required Editor Files into your application's data directory (see the Distribution section below). Note: You cannot call code that uses the editor before the EditorReady() callback method has been called. Use the EditorReady method to execute any code that should run when the editor has finished initialising. This is by far the most frequent problem that people have using the editor. Add any code after the parent call. Tip: The new editor contains a built in toolbar, you don't need to populate the additional toolbar that the old editor required. This toolbar can be easily customised (a full guide and examples are coming soon).

Distribution

Important: The new editor requires that you ship the following files with your application (place these in the application or Data directory for your application). All of these files are shipped in the Editor Files directory in your examples folder: Clarion\3rdparty\examples\FileExplorer\Editor Files\.

• These files can either be in the current path for your application, or you can use set the feEditor.editorPath property to the directory that contains them before the call to the feEditor.Init() method initialises the editor.
• Make sure you update these files each time there is a new release, as we will be improving the functionlity provided, as well as reducing the number of files required.
• Copy both the feeditor.html file, and the feeditor subfolder. Both are required for the editor to operate. If you do not copy these files, the editor will not work. They are not optional, and the entire contents of the Editor Files directory is required.



Customising the Editor and Toolbar

The editor provides a great deal of flexibility, and is simple to customise. We will be adding a number of guides to customising the editor in a variety of ways.

1. Changing the Intial Editor Settings

All the settings for the editor are defined in the feeditor.html file. This makes customising the editor, adding plugins, modifying the toolbar and so on as simple and self contained as possible.

In KEDITOR.replace() all the settings are defined, and can be modifed as needed. In the example below we are going to add a setting to cause the toolbar to display as collapsed rather than expanded when the editor starts up.

Each setting is made up of the setting name, a colon, and the value for the setting, such as:

extraPlugins: 'Open',

Where extraPlugin is the name of the setting and the value is "Open". For strings the setting is enclosed in single or double quotes, for booleans and number values no quotation marks are needed. For settings that take an array of values, the values are seperated by commas, and the array is started and ended with a square bracket (see the contentCss option below).

In our example below, we add the toolbarStartupExpanded option to the existing options:
customConfig : '',     // Ensure no external config file is load. All customisation is done here
extraPlugins: 'Open',  // Add all custom plugins to this list (comma seperated string)
skin: 'kama',          // Set the skin. Can be: black, kama, office2003, v2, or any other skin installed
uiColor: '#DDDDDF',
toolbarStartupExpanded: false    // Add this option to change the toolbar initial state

Just add the comma after the last setting, and then add your own settings. You can add as many as you like, they are just comma seperated.

2. Useful editor settings and customisation options

Directly below the currently used setting there is a section that is commented out that contains a variety of other useful settings that you can enabled:

baseHref: './',
contentsCss: ['/css/mysitestyles.css', '/css/anotherfile.css'],
fullPage: true,                                 // Whether a full page is being edited, or an HTML snippet
newpage_html: '<p>Type your text here.</p>',    // initial HTML
shiftEnterMode: CKEDITOR.ENTER_P,               // CKEDITOR.ENTER_BR or CKEDITOR.ENTER_DIV
enterMode: CKEDITOR.ENTER_BR,                   // CKEDITOR.ENTER_BR or CKEDITOR.ENTER_DIV
startupMode: 'source',
startupOutlineBlocks = true,
tabIndex = 1,
tabSpaces = 4,
templates = 'my_templates',
templates_files =
[
 '/editor_templates/site_default.js',
 'http://www.example.com/user_templates.js'
],
theme: 'default',
templates_replaceContent: false,    		// or true
toolbarCanCollapse: false,          		// or true
toolbarStartupExpanded: true, 	  		// or false
toolbarLocation: 'top', 	  		//'bottom' 'left' 'right'
undoStackSize: 50,                		//number of undos

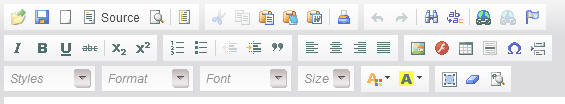

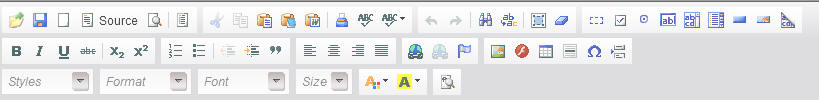

3. Toolbars and toolbar customisation

1. Each button name is wrapped in single quotes
2. Buttons are seperated by commas
3. Each set of buttons is an array, wrapped by squared brackets. Each array has a comma before the next one
4. You can add a divider between buttons using '-' as an entry in the button list.
5. You can split rows on the toolbar by adding '/' between the array entries.

You can move and arrange buttons as needed, for example the minimal toolbar has most buttons removed, and the rest merged into a four groups on one line:

    min_toolbar :
    [
     ['Undo','Redo', '-', 'Bold','Italic','Underline'],
     ['NumberedList','BulletedList','-','Link','Unlink','Anchor'],
     ['JustifyLeft','JustifyCenter','JustifyRight','JustifyBlock'],
     ['Format','Font','FontSize', '-', 'TextColor','BGColor'],
    ],

The toolbars themselves are actually part of a comma seperated list of options, hence they end with a comma before the next setting.

The "Open" button is an example of how simple it is to add you own buttons and "plugins":

1. Add a new button to the toolbar
2. In the extraPlugins setting just below the toolbar add the name of your button (again, this is just a comma seperated list of plugins). So "Open" would become: "Open, MyPlugin, SpecialButton", and so on.
3. Find the Custom Plugins section further down in the file. This is where we add the logic for the plugin.
4. There are two sections:
   • The call to CKEDITOR.plugins.add(), which adds the plugin and;
   • The callback (event handler) function (open_onclick(e) in the case of the Open button, which can be named anything that you prefer).
5. By default you don't need to add any code to the callback (event handler) at all. FileExplorer will automatically call the TakeEvent method with the name of the button that was pressed (the PreTakeEvent method will also be called before the JS code executes) .
6. You can call your button/plugin simply by passing the feEditor.CallCommand() method the name of your plugin.

For example, let's add a plugin called "Widget".

1. Add Our toolbar button by adding

 /* Custom Widget button*/
CKEDITOR.plugins.add('Widget',{
  init:function(a)
  {
    var cmd = a.addCommand('Widget', {exec:widget_onclick})
    cmd.modes = {wysiwyg:1, source:1}
    cmd.canUndo = false
    a.ui.addButton('Open',{ label:'Run a Widget...', command:'Widget', icon:'Widget.gif' })
  }
})

function widget_onclick(e)
{
    // No code is needed here for the default functionality
}

Examples

Demo

The main Demo example demonstrates the bulk of the functionality provided by FileExplorer, including the HTML editor provided by the feEditor class. See the feHtmlEditor_MainExample procedure.

MailMerge (recommended)

A new example application that demonstrates the editor, as well as a variety of techniques for using the editor, and creating simple mail merge style functionality:

• Using the new FeEditor class for HTML editing.
• Loading from memory or disk directly after the editor has finished initialising.
• Retreiving the HTML contents from the editor, setting the content of the editor, and dynamically allocating memory for retrieving the contents of the editor.
• Inserting text into existing HTML documents.
• Dynamically populating a list with fields from any table using Who() and What().
• Dynamically locating fields in a table by name, and retrieving the values of field in a table.
• Replacing the inserted place holders with the actual fields values.
• Writing a modified HTML document back to disk as a new file.
• Using the feFile generic file handling class.
• Displaying HTML documents on a new thread using the feBrowser class.

NetTalk

A simple HTML editor for creating and sending emails using CapeSoft NetTalk.





feEditor - Methods

Quick Reference
	Method Description Beta Notes Edit The Edit command, allows Copy, Paste, Cut etc. to be performed Not fully backward compatible GetHtmlGraphicsInfo Retrieves the list of images used in the document (use EmbedImages instead of this method). Supported, and enhanced by the new EmbedImagesmethod GetInfo Retreives properties of the document and control Supported, some properties may be deprecated or unsupported HideControl Hides the control   Init Intialises the object and control   InsertHtml Inserts HTML into the control Supported InsertTable Inserts a table into the HTML In progress InsertText Inserts text into the control Needs testing KeyPressed Detects a key press Not tested Kill Cleans up and destroys the control   Load Loads a document   NewDocument Creates a new (blank document) In progress (can be done simply by blanking the HTML) PrintMe Prints the document Needs testing and possibly additional support Reload Reloads the document   Save Saves the document   SetFocus Sets the focus to the control In progress, this is vastly improved in the new version Settings Allowed the background color to be set in the old editor, provides access to all document properties in the new editor. In progress UnhideControl Unhides the control and refreshes the display   Update Updates the properties of the document and control. The new editor will provide methods for doing this directly for each property. Supported, some properties still need to be added.             New Methods     BeforeEditorInit Called when the control and editor have both loaded, but before the editor is initialised.   BeforeEditorLoad Called when the control has loaded,but before the editor has loaded. CallCommand Provides the ability to call any of the commands available to the underlying editor, including any of the toolbar buttons, plugins etc.   CollapseToolbar Collapses the editor toolbar   Debugging Enables or disabled debug logging and error messages displayed   Log Outputs a string to the debug log   ErrorTrap Called class methods to indicate an error or warning   GetHtml Returns the HTML of the edited page   GetText Returns the plain text version of the document being edited   GetPageTitle Returns the title of the edited page Not implemented EditorReady Called by the object to indicate that the editor has loaded and is ready to be used   EmbedImages Embeds the images and returns a string containing a comma seperate list. Replaces and enhances the GetHtmlGraphicsInfo method. Updated ExpandToolbar Expands the editor toolbar   IsReady Returns whether the editor is fully loaded and ready to be used   Load Loads document   PreTakeEvent Identical to TakeEvent, but called with the event before it is actually processed   Revert Reverts the document to the version of disk   SetHtml Sets the HTML content of the current document   SetPageTitle Sets the title of the page Not Implemented ReplaceInString Replaces one or all occurances of a substring with the specified string   SetFileName Sets the filename used by the editor, typically not called manually.   SetSkin Sets the skin for the editor, must be called from BeforeEditorLoad. Cannot be done once the editor has loaded. Not implmented in the class in 5.20 Beta -  this is provided in the feeditor.html file itself. TakeEvent Event handling, allows all events provided by the editor to be trapped



New Methods of the feEditor class

Debugging (long debug)

Enables or disables debug logging and the display of scripting error or warning messages by the IE control. The debug output and whether the the control displays messages can also be set independantly by setting the .debugging property of the feEditor directly, and by calling Update() to change the SilentMode of the control itself. See the example below.

Parameters

long debug

A value of 1 to enable debug logging by the class, and to allow IE to display scripting (and other) errors and warnings. A value of zero disables debug logging and sets IE to silent mode to ensure it does not display prompts.

Return Values

None

Examples

! Enable debugging and the display of error or warning messages by the underlying control.
htmlEditor.Debugging(true)

! Turn off the display of errors and warnings, but still
! allow debug output to be sent to the system debug log.
htmlEditor.Update('SilentMode', true)

! Enabled or disable debugging without affecting whether the control displays messages
htmlEditor.debugging = false

Remarks

Regardless of whether debug logging is enabled or not, ther ErrorTrap method will still be called with any errors or warnings, allowing them to be handled, although the output will not be sent to the system debug log when this occurs.

In order to view the debug output a tool such as DebugView is needed. DebugView is available free from Microsoft - www.sysinternals.com.





Log (string info)

Outputs a string to the system debug log. In order to view the debug output a tool such as DebugView is needed. DebugView is available free from Microsoft - www.sysinternals.com. Output will only be displayed if the .debugging property of the object is set to 1.

Parameters

string info

The string to output to the system debug log. There is no limit on the length of this string. In order to identify the output as coming from your application, and to allow the output to be highlighted and filtered it is strongly recommended that you prepend an identifier to your string that identifies it as having come from your application (see the remarks section below).

Return Values

None

Examples

htmlEditor.debugging = false
htmlEditor.Log('[FE] feEditor.Load(): Error the file name specified did not exist.')

Remarks

In order to identify the output as coming from your application, and to allow the output to be highlighted and filtered it is strongly recommended that you prepend an identifier to your string that identifies it as having come from your application. For example all FileExplorer output begins with '[FE] '. This makes it simple to identify the output, and also to filter it out if needed. It is also recommended that you provide the ability to enable and disable output at runtime, as the debug log is shared by all applications on the machine and applications that use the bebug log indiscriminately as if it is their own private log can be quite inconvenient, especially if the strings being output have no identifier to allow them to be easily filtered out.







ErrorTrap (string methodName, string errorMessage)

Called be the methods of the class when an error occurs. This allows errors to be trapped and handled within your code. If the .debugging property of the object is set to 1 to enable debug output then this method will also log the message to the system debug log. See the Log() method for more information.

Parameters

string methodName

A string containing the name of the method that the error occured in

string errorMessage

A string containing the actual error message. FileExplorer uses the convention that the string beings with 'Warning:' for warning messages and 'Error' for error messages, which make it easy to identify the severity of the error.

Return Values

None

Examples

feEditor.ErrorTrap Procedure(string methodName, string errorMessage)
  code

    if Instring('Error:', errorMessage, 1, 1)
        Message('An error occured in ' & Clip(methodName) & ': ' & Clip(errorMessage))
    end

    parent.ErrorTrap(methodName, errorMessage)

Remarks







GetText (), string

Returns the the plain text version of the document being edited.

Parameters

None

Return Values

Returns a string that contains the plain text version of the HTML file that is loaded in the editor. This is only the text contents, and is formatted as close to the original page in terms of layout as plain text allows.

Examples

textVersion    string(08000h)     ! 32KiB string
  code

! Example 1: Load an HTML file and get the Text Only version of the document

HtmlEditor.Load(fileName)
textVersion = HtmlEditor.GetText()
Message('Text Version: ' & Clip(textVersion))



GetHtml (*string htmlSource), long

Returns the actual HTML source of the document being edited. If the passed string is not large enough then the HTML is trucated to fit the string and the method returns the size required to store the entire document.

Parameters

*string htmlSource

A string that will be populated the the HTML source for the current document.

Return Values

Returns 0 for success. If the passed string is not large enough then the HTML is trucated to fit the string and the method returns the size required to store the entire document.

Examples

Example 1. Get the HTML from the editor and store it in a fixed length string (the same approach also applies to Memo fields).

htmlSource         string(4096)
  code

    HtmlEditor.GetHtml(htmlSource)

Example 2. This example performs the same function as the first, however it dynamically allocates the string so that any amount of data can be stored.

htmlSource         &string
reqSize            long
  code

htmlSource &= new string(4096)     ! Set an initial size
reqSize = HtmlEditor.GetHtml(htmlSource)
if reqSize > 0                     ! The initial size is too small
    Dispose(htmlSource)
    htmlSource &= new string(reqSize)
    HtmlEditor.GetHtml(htmlSource)
end

Dispose(htmlSource)                 ! Dispose of the string when done



Example 3. Store the HTML from the editor in a BLOB field in table.

HtmlEditor.GetHtml(MyTable.BlobField)





GetPageTitle (), string, virtual

Not supported in the current release. Returns the title of the loaded document.

Parameters

None

Return Values

None

Examples

pageTitle = HtmlEditor.GetTitle()





EmbedImages (long embedImages=1), string

EmbedImages (*string htmlData, long embedImages=1), string

This method is used to return a string containing a comma seperated list of all images used in the document, and also to optionally change the source for each image to use the format for embedding the image when sending the HTML in an email. Note that if embedImages is set to 1 this modies the actual HTML source of the document.

For example when using NetTalk the HTML file can be send with all images simply by calling EmbedImages and assigning the returned string to the embedList property of the the NetEmailSend object (see the example below).

There are two forms of this method, the first fetches the HTML from the editor, retrieves the list of images, and then optionally updates the editor with the new HTML with the image references in the embedded form.

The second (which takes a string reference as the first parameter), does the same thing, but using the passed string. This is indepedenant of the actual editor, and can be used with an editor control, and with having to call the Init method. This is particularly useful when loading the HTML from disk, or using this method with other tools such as NetTalk, where you may not need an editor.

Parameters

long embedImages=1

Determines where the images will be embedded (the default behaviour) or whether to just return the string containing the comma seperated list of images used. If this is set to 1 then each image source is changed to the format required for embedding. This allows the image list to be retrieved and the image sources to be changed to use the 'cid:' format required for embedding in a single step. Setting this to 0 will return the image

Return Values

Returns a string containing a comma seperated list of all files embedded. See Example 2 below, which uses the returned string with NetTalk to send an HTML and text email with embedded images.

Examples

Example 1: Embedding the image list when using the HTML Editor. Note that this modifies the actual documented being edited. Typically called in a mail app when actually sending the mail, the "embed" version would not be saved, rather the GetHtml would be called to saved the HTML before embedding.

EmailSender.embedList = HtmlEditor.EmbedImages()    ! Embed the images and create the embed list
HtmlEditor.GetHtml(htmlData)                        ! Get the HTML data from the editor

Example 2: Embedding images in HTML that is stored in a string. The HTML can of course be retrieved from the editor, although an editor does not need to be used or intialised in order to call this method. The example below uses an instance of the class without creating an editor.

! declare an instance of the feEditor class to use. There will be no control populated
! and the Init method will never be called
htmlEditor     Class(feEditor)
               end
htmlData       &string
  code
    ! An example of loading the HTML data from a BLOB in a table
    ! called HtmlStore
    htmlData &= new string(HtmlStore.DataBlob{prop:size})
    htmlData = HtmlStore.DataBlob[0 : HtmlStore.DataBlob{prop:size} - 1]

    ! Embed the images, and modify the passed HTML data for embedding
    EmailSender.EmbedList = htmlEditor.EmbedImages(htmlData)

    ! The code below sends the message using CapeSoft NetTalk
    EmailSender.SetRequiredMessageSize(Len(Clip(textData)), Len(Clip(htmlData)), 0)
    if not EmailSender.error
        EmailSender.messageText = textData
        EmailSender.messageHtml = htmlData
        EmailSender.SendMail(NET:EMailMadeFromPartsMode)
    end

    Dispose(htmlData)





Load (), long
Load (string fileName), long

Loads a document. If no parameter is passed then a FileDialog is displays to allow the user to select the document to load.

Parameters

string fileName

An optional parameter indicating the file name to load (including the path). If no parameter is passed then a FileDialog is displays to allow the user to select the document to load.

Return Values

Returns 1 for sucess and zero to indicate failure. If an error occurs then the ErrorTrap() method is called with the error message.

Examples

if fileName = ''
    HtmlEditor.Load()
else
    HtmlEditor.Load(fileName)
end







Revert (long promptUser=0)

Reverts to the previous version of the document (whatever is currently on disk). Any unsaved changeds are lost.

Parameters

long promptUser=0

Determines whether or not the user is prompted before the document is reverted to the last saved version. If this is set to 1 then the user is prompted, and the user can then cancel the process and choose to not allow the document to be reverted.

Return Values

None

Examples

HtmlEditor.Revert(true)      ! Revert but prompt the user to make sure that they are aware that changes will be lost.





SetHtml (*string htmlSource)

SetHtml (*BLOB htmlSource)

Sets the HTML of the document to the passes string. The string should contain a valid HTML document (although if the it only contains HTML code the required html, head and body tags will be created). This can be used in conjunction with GetHtml() to retreive the HTML source, modify it, and then update the control. It can also be used to load the control directly from memory rather than from disk. See the example below for loading the editor from a BLOB field.

Parameters

*string htmlSource
*BLOB htmlSource

A string (or BLOB) containing the HTML to load into the control. The string should contain a valid HTML document (although if the it only contains HTML code the required html, head and body tags will be created)

Return Values

None

Examples

! Load a HTML from a string into the editor:

    HtmlEditor.SetHtml(htmlString)         ! Load the data into the editor.

! Load from a BLOB field into the editor
    HtmlEditor.SetHtml(MyTable.BlobField)         ! Load the data into the editor.





SetPageTitle (string pageTitle)

Not supported in the current release. Sets the Title of the current document. This is the contents of the <title> tag in the HTML.

Parameters

string pageTitle

A string that contains the title of the page.

Return Values

None

Examples

HtmlEditor.SetPageTitle('Hello World')





ReplaceInString (*string pText, string oldValue, string newValue, long replaceAll=1), long

Find and replaces one or all occurances of the specified substring within the passed string.

Parameters

string pText

The text to search.

string oldValue

The value to search for

string newValue

The string to replace the found instance(s) with

long replaceAll = 1

Specifies whether all instances should be replaced, or just the first instance found. Defaults to 1 to replace all instances. Pass as zero to only replace the first instance found.

Returns

Returns 1 for success, or zero for failure (the method will fail if the string is not large enough to contain the replacement values).





IsReady (), long

This method returns the .editorReady  property of the editor, which indicates whether the editor has fully loaded and is ready for use or not. Methods that interact with the editor cannot be called before the EditorReady() callback is called and the .editorReady property is set to 1.

When the editor intialises it does so in two stages. First the actual control is intialised, and then the editor is loaded. Once the control has loaded it calls the BeforeEditorLoad() method, which allows last minute configuration to be done before the editor itself is loaded. Once the editor is loaded, but before it intialises the BeforeEditorInit() method is called and finally the EditorReady() method is called to indicate that the loading is complete. This allows code to be added in each stage of the loading process.

Once editor is loaded completly the .editorReady property is set to 1 and the EditorReady() method is called.



Parameters

None

Return Values

Returns 1 if the editor is intialised and ready to be used, or zero if the editor either has not been initialising, or is still in the process of doing so.

Examples

if HtmlEditor.IsReady()
    HtmlEditor.Load(myFileName)
end





SetFileName (string fileName)

Sets the file name properties for the class based on the passed file name. This method would not typically be called, except from within the class when a new document is loaded. For file loading, saving and file name and path handling the feFile class can be used.

Parameters

string fileName

The name of the file, including the path. This is then parsed, split and stored in the object properties.

Return Values

None

Examples

n/a





SetSkin (string skinPath)

Sets the skin (style) for the editor to use. The editor ships with a number of different skin (style) options. This must be set in the BeforeEditorInit() method in order to work. One the editor has initialised the skin cannot be changed. The Office2003 skin is currently the default.

Parameters

string skinPath

The path to one of the folders in the skin directory in the Editor directory. For example: 'skins/aluminium/' or 'skins/office2003'

Return Values

None

Examples

HtmlEditor.BeforeEditorInit Procedure()
  code

    case mySkinStyle
    of 1
        HtmlEditor.SetSkin('skins/Office2007Real')
    of 2
        HtmlEditor.SetSkin('skins/Office2003')
    of 3
        HtmlEditor.SetSkin('skins/Aluminium')
    of 4
        HtmlEditor.SetSkin('skins/silver')
    else
        HtmlEditor.SetSkin('')   ! Use the default
    end

  parent.BeforeEditorInit ()





CallCommand (string commandName)

Calls (executes) any of the command available to the JavaScript based editor by name. This includes all toolbar commands and plugins.

Parameters

string commandName

The name of the command to call (execute). The editor supports the following values (not all possible values are included below as any number of plugins may be added to the editor):

'Open', 'Save', 'NewPage', 'Source', 'Preview', Templates'

'Cut', 'Copy', 'Paste', 'PasteText', 'PasteFromWord', 'Print', 'Undo', 'Redo', 'Find', 'Replace', 'SelectAll', 'RemoveFormat'

'Form', 'Checkbox', 'Radio', 'TextField', 'Textarea', 'Select', 'Button', 'ImageButton', 'HiddenField'

'Bold', 'Italic', 'Underline',' Strike', 'Subscript', 'Superscript'

'NumberedList', 'BulletedList', 'Outdent', 'Indent', 'Blockquote'

'JustifyLeft', 'JustifyCenter', 'JustifyRight', 'JustifyBlock'

'Link', 'Unlink', 'Anchor'

'Image', 'Flash', 'Table', 'HorizontalRule', 'SpecialChar', 'PageBreak'

'Styles', 'Format', 'Font', 'FontSize'

'TextColor', 'BGColor'

'ShowBlocks'

Return Values

None

Examples

HtmlEditor.CallCommand('Bold')    ! Bold the current selection





CollapseToolbar ()

Toggles the toolbar state. The new CKEditor doesn't not provide "collapse/expand", instead the toolbar state can be toggled using the CollapseToolbar() and ExpandToolbar() methods, which are now both identical in function.

Parameters

None

Return Values

None

Examples

HtmlEditor.CollapseToolbar()





ExpandToolbar ()

Toggles the toolbar state. The new CKEditor doesn't not provide "collapse/expand", instead the toolbar state can be toggled using the CollapseToolbar() and ExpandToolbar() methods, which are now both identical in function.

Parameters

None

Return Values

None

Examples

HtmlEditor.ExpandToolbar()



Callback methods

_EventCallback (long EventID, string Parm1, string Parm2, string Parm3, string Parm4, string Parm5, string Parm6, string Parm7), long

The internal event callback method, this is not typically a method that would be called directly or overrriden. Additional methods will be provided to handle each specific event

Parameters

long EventID

The identifier for the particular event generated by the control

string Parm1...string Parm7

The list of parameter values associated with the event.



Return Values

Returns 1 for success and zero for failure

Examples

n/a





EditorReady ()

Called once the editor has loaded and initialised. This indicates that the editor is actually ready to be used. If you need to execute code as soon as the editor has loaded, then this is the method to use.

Parameters

None

Return Values

None

Examples

HtmlEditor.EditorReady Procedure()
  code

    HtmlEditor.Load(myFileName)   ! Load a file as soon as the editor is ready

  parent.EditorReady()





BeforeEditorInit ()

This method is called once the control has loaded, and the editor has loaded, but not been intialised. It provides a point at which any last minutes changes to the configuration can be made. For example the SetSkin() method can be called to change the skin (style) of the editor.

When the editor intialises it does so in two stages. First the actual control is intialised, and then the editor is loaded. Once the control has loaded it calls the BeforeEditorLoad() method. Once the editor is loaded, but before it intialises, the BeforeEditorInit() method is called and finally the EditorReady() method is called to indicate that the loading is complete. This allows code to be added in each stage of the loading process.

Once editor is loaded completely the .editorReady property is set to 1 and the EditorReady() method is called.



Parameters

None

Return Values

None

Examples

HtmlEditor.BeforeEditorInit Procedure()
  code

    case mySkinStyle    ! Load a skin (style) file based on a variable's value
    of 1
        HtmlEditor.SetSkin('skins/Office2007Real')
    of 2
        HtmlEditor.SetSkin('skins/Office2003')
    of 3
        HtmlEditor.SetSkin('skins/Aluminium')
    of 4
        HtmlEditor.SetSkin('skins/silver')
    else
        HtmlEditor.SetSkin('')   ! Use the default
    end

  parent.BeforeEditorInit ()







BeforeEditorLoad ()

This method is called once the control has loaded and before the actual editor is loaded.

When the editor intialises it does so in two stages. First the actual control is intialised, and then the editor is loaded. Once the control has loaded it calls the BeforeEditorLoad() method. Once the editor is loaded, but before it intialises, the BeforeEditorInit() method is called and finally the EditorReady() method is called to indicate that the loading is complete. This allows code to be added in each stage of the loading process.

Once editor is loaded completely the .editorReady property is set to 1 and the EditorReady() method is called.



Parameters

None

Return Values

None

Examples







Additional Methods of the feEditor class



Edit (long EditType)

This method has been replaced by the CallCommand() method.





GetHtmlGraphicsInfo ( *string HtmlSource), string

This method is deprecated and the functionality is expanded int he new EmbedImages methods. Calling this method will call EmbedImages to return a string containing the image files used in the HTML document. This is usually done in order to then embed the images when sending an email. The EmbedImages method also allows each image SRC in the HTML to be modified to the format required for embedding when sending the email.

This method was written primarily to make it easier to use File Explorer with NetTalk, to create and send emails. The idea is that you use File Explorer to create / view an email (html). To send this email (using NetTalk), you need to set several NetTalk properties.  Two of these properties are a comma separated list of graphics in the html (ThisEmailSend.EmbedList), and a modified version of the html code (ThisEmailSend.MessageHtml), where image paths are changed from qualified paths to paths prefixed with "cid".

This File Explorer method simply updates two File Explorer properties, self.Source and self.GraphicsList. Also look at the notes below on the "RootFolder" property.

Parameters

string HtmlSource

A string that contains the HTML document to extract the images from

Return Value

Returns a string containing a comma seperated list of all images used in the HTML document.

Example

HtmlEditor.GetHtml(htmlString)               ! needed only for the next line
HtmlEditor.GetHtmlGraphicsInfo (htmlString)  ! updates the Source and Graphics list properties
ThisEmailSend.MessageHtml = htmlStringe
ThisEmailSend.EmbedList = HtmlEditor.GraphicsList







GetInfo (long property)
GetInfo ()

This method is deprecated with the new editor. It will still be supported, but the specific methods should be called to fetch the required properties where possible. See GetHtml() and GetText().

This method queries the object and updates properties with information.  Think of this as updating the properties (variables) at a moment in time.

Parameters

long property

This optional parameter used to specify which values should be retrieved. If no parameter is passed them all the values are retrieved. Can be one of the following values:

• fe:outerHtml or fe:HtmlSource - retrieves the source code and stores it in the .outerHtml property (which can also be accessed using the .source property). The GetHtml() method should be used to retrieved this.
• fe:outerText or fe:innerText - retrieves the text version of the document. For the moment these act the same, however it is recommended that fe:outerText be used for fetching the entire document's text as fe:InnerText will apply to the current element in future versions. The GetText() method shoudl be used to retrieve this value.

Other values are not supported at this time.

Return Values

None.

Example

ThisViewer1.GetInfo ()





HideControl ( )

Hides the File Explorer viewer control.  Note: ?feControl{prop:hide} = true will not work. This is becuase the panel control that is placed on the window is replaced entirely with the COM control.

Parameters

None.

Return Value

None

Examples

ThisViewer.HideControl()





Init ( )
Init ( long CurrentControl, <string LoadPath>, long Handle1=0, long Handle2=0, byte SkipCallbacks=false)

Called to initialise the control and load the editor. Must be called before any other methods are called. The second prototype is provided for backward compatibility with the old editor. The parameters are optional and ignored by the new editor.

The editor is NOT loaded once this method has been called. Use the EditorReady method for code that should run as soon as the editor has initialised.

Parameters

None. No parameters are needed with the new editor, however the old prototype for the method is still supported for backward compatibility. Any passed parameters are ignored.

Return Value

None

Example

HtmlEditor.Init()

Notes

When the editor Init() method is called the control is loaded followed by the actual editor. The Init() method is asynchronous, so it completes and returns control to your application while the editor is being initialised in the background. Any calls to the methods while the editor is still loading will be ignored. Just before the editor is actually loaded the Init() methods calls the BeforeEditorLoad() callback method. This is where you can add code to modify the editor just before it is loaded. For example you can call SetSkin() to change the skin being used.

Once the initialisation is complete and the editor is loaded and ready to use the EditorReady() method is called. You can embed your code in this method that needs to execute as soon as the editor is ready to be used. The .editorReady property of the object is also set to 1, and you can call the IsReady(() method to check whether the editor has is ready to be used at any time.





InsertHtml (long location, string htmlToInsert )

This method enables you to insert html into the loaded document.  The TextToInsert parameter that you pass can be either actual "html", or a variable containing the html to insert (as illustrated in the examples below).

Parameters

byte location

This parameter is not currently supported by the new editor, the text is always inserted at the current cursor position.
One of the following values:

• 1 - Inserts the html at the current position of the cursor.
• 2 - Immediately before the current element
• 3 - After the start of the current element, but before the content of the element
• 4 - Immediately before the end of the element, but after all the content inside the element
• 5 - Immediately after the end of the element

string htmlToInsert

A string containing the HTML to insert into the document.

Return Value

None

Example

HtmlEditor.InsertHtml(myHtmlString)



InsertTable ()

Use CallCommand to automatically trigger table insertion.

This method will be fully supported in future releases.

Parameterssrsssss

n/a

Return Value

None.

Examples

n/a



InsertText     ( byte location, string textToInsert )

This method enables you to insert text into the loaded document.  The TextToInsert parameter that you pass can be either actual text, or a variable containing the text to insert (as illustrated in the examples below).

Parameters

byte Location

This parameter is not supported in this release. In future releases the following values will be supported:

• 1 - Inserts the text at the current position of the cursor.ursor.
• 2 - Immediately before the current element
• 3 - After the start of the current element, but before the content of the element
• 4 - Immediately before the end of the element, but after all the content inside the element
• 5 - Immediately after the end of the element

string textToInsert

The actual text to insert into the document.

Return Value

None

Examples

MyVar = 'I am here'
ThisViewer1.InsertText (1, MyVar)

Remarks

In order to insert multiple spaces the InsertHtml method needs to be used. The HTML format ignores extraneous white space, so multiple spaces will be displayed as a single space.



KeyPressed () ,long

This method will be provided in future version of the HTML editor.





Kill (  )

Handles the "closing down" of an object. Typically called as the window which contains the object is closed. This method must be called before the object goes out of scope in order to ensure that all allocated memory is released.

Parameters

None

Return Values

None

Examples

HtmlEditor.Kill ()





NewDocument ( )

Creates a new, blank document.

You can call this method before calling the Load method (although it is not necessary as a new blank document is created automatically). The Init() method must be called before any other methods are called and will automatically create a new blank document, so it is not neccessary to call NewDocument unless you would like to clear the contents of the editor and create a blank document.

Parameters

None

Return Value

None

Examples

     HtmlEditor.NewDocument()





PrintMe (byte showDialog=0)

Prints the loaded document. Identical to the user pressing the Print button, and identical to calling CallCommand('Print').

Parametersmeters

byte showDialog = 0

Not supported, defaults to 0.

Return Value

None

Examples

HtmlEditor.PrintMe ()





Reload ( )

Reloads the last document which you loaded, the equivilent of the Revert() method, without the option to prompt the user. This is identical to calling the Load() method with the same file name as previously specified. It will load the document from disk and any usaved changes will be lost.

Parameters

None

Return Value

None

Example

ThisViewer1.Reload()



Save     ( *string saveLocation, byte saveType, byte promptUser=true ), byte, proc

Saves the HTML document to disk, or into the passed string, depending on the value of the saveType parameter.

If the saveType is set to 1 the function saves to disk.

• This method saves the loaded html document to either a variable (field), or to a file (disk)
• The SaveType parameter sets whether you are saving to a file on disk or to a variable, and can be one of these values:
  • 1 - Save to a file on disk
  • 2 - Save to a variable
• The SaveLocation parameter is either the name of the file that the html should be saved to (if SaveType=1), or is the actual variable which should store the html (if SaveType=2).

Parameters

None

Return Value

None

Example

! Save a file and specify the file name
fileName = LongPath() & '\MyFile.htm'
HtmlEditor.Save(fileName, 1)

! Save a file that is being edited (commit the changes to disk)
HtmlEditor.Save()





SetFocus     ( )

Sets the focus to the window that contains the FileExplorer control.

Parameters

None

Return Value

None

Examples

HtmlEditor.SetFocus()







Settings     ( string bkgColor ) ,byte

This method is deprecated and not supported by the new editor. It was provided to set the background colour of the page, which will be exposed through  SetBackgroundColor() and GetBackgroundColor() methods in future versions.





UnhideControlontrol     ( )

Unhides the FileExplorer control if it has been hidden using the HideControl method. Note that the panel populated in the Window Editor is purely a place holder, and has no relation to the actual Com control, it ise used purely for positioning and visual representation in the Window Editor in Clarion. Setting ?feControl{prop:hide} = false will have no impact on the visibility of the control.

Parameters

None

Return Value

None

Examples

ThisViewer.UnhideControl()





Update     ( string property, string propValue )

Use this method to update various properties / values. This method is supported by the editor, but it is recommended that you call the relevant methods directly rather than using this method. For example use GetHtml(), SetHtml() and GetText() rather calling GetInfo() and Update() to get or set the HTML.

Parametersameters

string property

The Property parameter can be one of the following strings

• 'PrinterHeader' - Changes the printout header when printing the document (no effect on the document loaded).
• 'PrinterFooter' - Changes the printout foot when printing the document (no effect on the document loaded).
• 'PrinterOrientation' - Switch between landscape and portrait mode printing
• 'Source' - Update the HTML source of the document with the HTML specified by the propValue parameter
• 'InnerHtml' - Update the HTML body of the document with the HTML specified by the propValue parameter
• 'InnerText' - Update the text portion of the document, not supported by the new editor
• 'OuterHtml' - The same as specifying 'Source'
• 'OuterText' - Update the text portion of the document, not supported
• 'ShowDetails' - Not supported
• 'ShowBorders' - Not supported
• 'Browser' - Not supported

string propValue

The value to set the specified property to.

Return Value

None

Examples

code

htmlSource = '<html><head></head><body><h1>Hello World</h1><p>This is an HTML document</p></body></html>'
HtmlEditor.Update('Source', htmlSource)

Note: It is recommened that the new method are using in preference:

htmlSource = '<html><head></head><body><h1>Hello World</h1><p>This is an HTML document</p></body></html>'
HtmlEditor.SetHtml(htmlSource)

Remarksemarks

The reason you use this method and don't just change the properties "directly" is because using this method results in the changes being implemented "immediately", and not for instance only coming into effect the next time you load a document into the object which is often the "default" behaviour.

This method should be considered largely deprecated, and is primarily provided for backward compatibility.





feEditor - Properties

active byte

This property is deprecated and should not be used. Use the EditorReady() callback method to determine when the editor is ready for use, or check the .editorReady property, which is set when EditorReady() is called and the editor has completed initialisation and is ready for use. The .editorReady property can be checked directly, or by calling IsReady().



browser byte

No longer supported.



currentPath string

The full path (including filename) of the file currently loaded. If no file has been loaded, or a new document is being edited that has not been saved, then this is blank. This property should not be set directly, typically this property will be set automatically by the Load and Save filenames, however it can be overridden by calling SetFileName, which sets all the path properties of the object based on the passed file name.



debugging long

Enables or disables debug output. See the ErrorTrap(), Log() and Debugging() methods.

editorPath string

The path to load the editor from. By default this is the current application directory.

Setting the .editorPath property overrides the default location that the feEditor.html file is loaded from an allows the editor to loaded from any location. The editorPath string should be set to the full path that contains the feEditor files.

This value must be set before the call to the feEditor.Init() method in order to have any effect.

Examples

htmlEditor.editorPath = 'C:\ProgramData\Company\MyApp'
htmlEditor.Init()



fileName string	The file name only, excluding the path
filePath string	The path to the document (without the file name), if a document is loaded by specifying a file name without a path then the current application path is used. This property has URL style forward slashs (/) for Windows style slashes use the pagePath property
pagePath string	The document path, but with normal Windows style backslashes (\)
docInnerText cstring	Same as the InnerText property, but this property holds the InnerText component for the whole document, not just the currently selected portion.  Use this property if you're wanting the "text" from an entire html page.  Refreshed using the GetInfo method.
initialDocument string The intial document to load into the editor when the EditorReady method fires. This can be set directly at any point before of after calling the Init() method (but before EditorReady is called), or the Load() method can be called, and if the editor is not ready, it will set the initialDocument property to the requested file, and load it when the editor has intialised and is ready. Examples htmlEditor.initialDocument = 'C:\ProgramData\Company\MyApp\start.html' htmlEditor.Init()
innerHtml cstring	Holds the HTML for the selected object, between the start and end tags.  See the GetInfo and Update methods.
innerText cstring	Holds the text for the selected object, between the start and end tags.  See the GetInfo and Update methods.
editorReady long	Whether the editor is ready for use or not. Can also be retrieved by calling the IsReady() method When the editor intialises it does so in two stages. First the actual control is intialised, and then the editor is loaded. Once the control has loaded it calls the BeforeEditorLoad() method. Once the editor is loaded, but before it intialises, the BeforeEditorInit() method is called and finally the EditorReady() method is called to indicate that the loading is complete. This allows code to be added in each stage of the loading process. The editor is then loaded and once complete the .editorReady property is set to 1 and the EditorReady() callback method is called. Methods that interact with the editor cannot be called before the EditorReady() callback is called and the isReady property is set to 1.
objType string	Not supported in the current version This property holds the selected object type within the current document.  It can be one of three things: "Text" - Selection is text based "None" - Nothing selected "Control" - An image or a form control is selected
outerHtml cstring	Use the GetHtml() method to retrieve the HTML source. Holds the selected (html) object's html content  See the GetInfo and Update methods.
outerText cstring	Holds the selected (html) object's text content  See the GetInfo and Update methods.
pageTitle cstring	Not supported in the current version, will be replaced by the GetPageTitle() method. Holds the title of the page being displayed.  See the GetInfo method.
picAlign cstring	Not supported in the current version Holds the "Alignment" setting for the currently selected image in an html document.  Use the GetInfo and Update methods.
picBorder byte	Not supported in the current version Holds the "Border" width for the currently selected image in an html file.  Use the GetInfo and Update methods.  (Setting the border to 0 will result in the image having no border).
picHSpacing byte	Not supported in the current version Holds the "Horizontal Spacing" setting for the currently selected image in an html file.  Use the GetInfo and Update methods.
picVSpacing byte	Not supported in the current version Holds the "Vertical Spacing" setting for the currently selected image in an html file.  Use the GetInfo and Update methods.
picSource string	Not supported in the current version Holds the source (web url or filename) for the currently selected image in an html file.  Use the GetInfo and Update methods.
picText string	Not supported in the current version Holds the "Alternate Text" (the text that displays when you point at the image, and/or if the image fails to load) for the currently selected image in an html file.  Use the GetInfo and Update methods.
rootFolder string	This has been deprecated as the GetHtmlGraphicsInfo method has been replaced by the enhanced EmbedImages() method. See EmbedImages().
source cstring	Use the GetHtml() method to retrieve the source rather than this property. Holds the html component (source / text) of the loaded page.  See the GetInfo and Update methods.
tagName string	Not supported in the current version Holds the Tag Name of the selected object (e.g. "STRONG", "FONT", "A").  See the GetInfo method.
url string	Replaces by the filePath property.



feEditor - Templates

At this time there is quite an overlap in terms of multiple File Explorer classes being implemented by the same templates.  In the future we may revisit this, but for now all templates are covered in the main (FileExplorer.htm) help document, please click here.





Quick Guides

1. Loading a document at startup or creating a blank document

Use the EditorReady callback method for any code that needs to be called as soon as the editor is ready for use. Note that you cannot call any of the editor methods until EditorReady has been called (the editor initialization happens in the background when the Init method is called - it is asynchronous).

In the Editor.EditorReady() method:

if Exists(myFileName)
    Editor.Load(myFileName)
else
    Editor.NewDocument()
end



2. Saving to an HTML file

fileName     string(FILE:MAXFILENAME)
  code
    fileName = 'mypage.html'  ! Can include the full path
    Editor.SaveAs(fileName)



3. Retrieving the HTML (and text) from the editor

htmlData           string(04000h)
textData           string(01000h)
  code
    Editor.GetHtml(htmlData)
    Editor.GetText(textData)

Note that you can also get a plain text version (if you're sending email that contains HTML then sending both the plain text and HTML parts is recommended)

The above example declared two strings of fixed length for retrieving the data, however this limits the amount of HTML that can be retrieved. The GetHtml method returns the size required if the string is not long enough, allowing the string to be dynamically resized:

htmlSource         &string
reqSize            long
  code
    htmlSource &= new string(4096)
    reqSize = HtmlEditor.GetHtml(htmlSource)
    if reqSize > 0
        Dispose(htmlSource)
        htmlSource &= new string(reqSize)
        HtmlEditor.GetHtml(htmlSource)
    end
    Dispose(htmlSource)                        ! Dispose the string when done







Event Handling

FileExplorer 5.20 introduces entirely new event handling for the editor, providing comprehensive handling of the events generated by the editor. FileExplorer provides embeds for each of these callbacks methods to allow you to add code when an event occurs.

BeforeEditorInit()

Called before the editor initialises during the loading process. Can be used to modify settings or file just before the editor uses them.

See the full BeforeEditorInit() document.



EditorReadyrReady()

Called when the editor has completed loading. Used to execute any code that needs to run as soon as the editor is available.

See the full EditorReady() documentation.



TakeEvent(string evt)

Called for all event handling. Allows any events to be trapped and responded to - such as the user pressing toolbar buttons. Receives the name of the event, such as "save", "print", "bold" and so on, including:

'Open', 'Save', 'NewPage', 'Source', 'Preview', Templates'

'Cut', 'Copy', 'Paste', 'PasteText', 'PasteFromWord', 'Print', 'Undo', 'Redo', 'Find', 'Replace', 'SelectAll', 'RemoveFormat'

'Form', 'Checkbox', 'Radio', 'TextField', 'Textarea', 'Select', 'Button', 'ImageButton', 'HiddenField'

'Bold', 'Italic', 'Underline',' Strike', 'Subscript', 'Superscript'

'NumberedList', 'BulletedList', 'Outdent', 'Indent', 'Blockquote'

'JustifyLeft', 'JustifyCenter', 'JustifyRight', 'JustifyBlock'

'Link', 'Unlink', 'Anchor'

'Image', 'Flash', 'Table', 'HorizontalRule', 'SpecialChar', 'PageBreak'

'Styles', 'Format', 'Font', 'FontSize'

'TextColor', 'BGColor'

'ShowBlocks'





PreTakeEvent(string evt)g evt)

Identical to TakeEvent(), but is called before the JavaScript code actually executes in response to the event. Like TakeEvent(), the string contains the event name.



Editor Use and Accessibility
